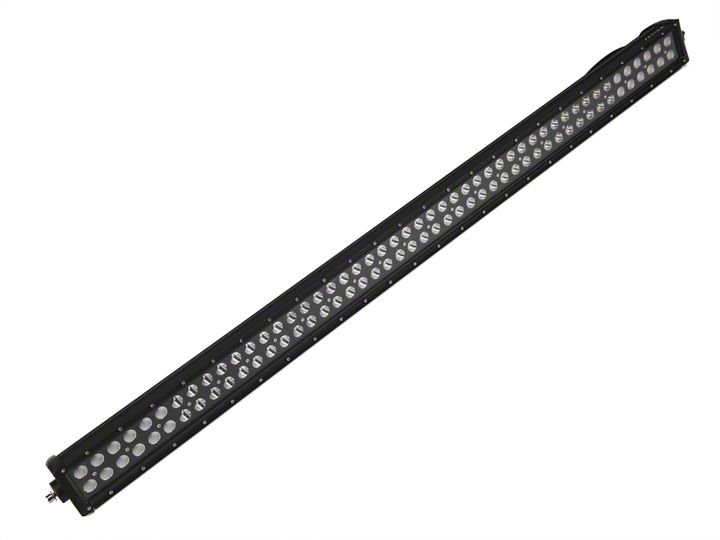

How to Install Raxiom 50 in. Straight Dual Row LED Light Bar - Flood/Spot Combo on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Box Cutter or Knife
- Crimp Tool or Pliers
- Electrical Tape
- Wire Connectors
- Wiring Harness
- Switch
- Light Bar Mount
Shop Parts in this Guide
Installation Instructions:
1. Carefully open the package using a box cutter or knife (Figure A) and ensure the light bar is included and undamaged.
Figure A
2. Mount to an A-pillar light mount for 50" light bars (not supplied) using supplied bolts and washers.
3. Run wires from a wiring harness (not supplied) through to the top of the A-pillar light mount (Figure B). Note: Either purchase the wiring harness from the same supplier as the light bar for a quick connection or create a wiring harness using 14-16 gauge wires.
Figure B
4. Connect wires from the light bar to the wiring harness using wire connectors and electrical tape (not supplied) (Figure C).
Figure C
5. Connect the relay wire from the wiring harness to the switch (not supplied) (Figure D).
Figure D
6. Connect the light bar wire from the wiring harness to the switch (Figure E).
Figure E
7. Connect the ground to the switch and connect to the chassis of the vehicle (Figure F).
Figure E
7. Connect the ground to the switch and connect to the chassis of the vehicle (Figure F).
Figure F
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 10/21/2017
