How to Install Putco Light Bar Bracket on your Wrangler

Bracket Installation

1. Remove bracket kit from packaging. Check to see if all parts from above kit contents table are included.

2. Remove Bolts shown if Figure 1 and set aside for both driver and passenger sides. Use T40 Torx
Bit to remove.

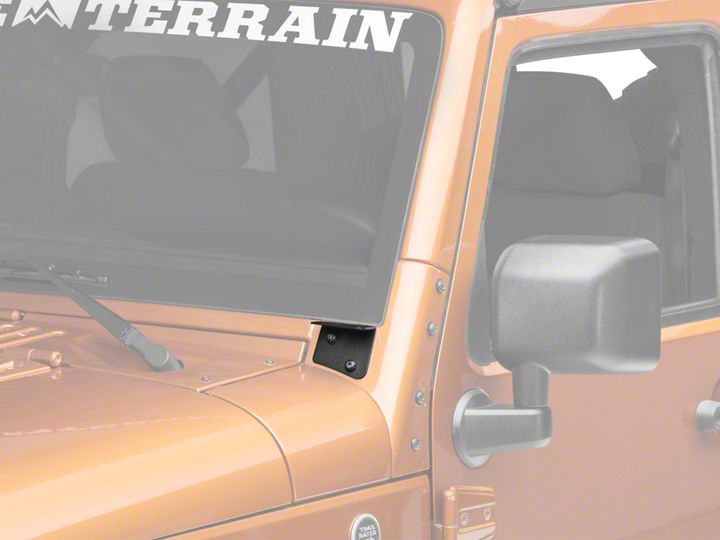

3. Place rubber spacers under driver and passenger bracket and install using factory hardware. Tighten Down Using T40 Torx Bit. Driver and passenger brackets are shown in Figure 2.

4. Mount light in top hole of bracket. (These brackets are designed for Putco 10004 Block LED Lamp)
