How to Install Putco 20 in. Luminix Light Bar Hood Mounting Brackets (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • T 40 Torx Bit
  • 5mm Hex Bit
  • Ratchet
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Please read all instructions before installation and to verify that all parts are included.


Bracket Installation

1 Remove bracket kit from packaging. Check to see if all parts from above kit contents table are included.

2. Remove Bolts shown if Figure 1. Use T40 Torx Bit to remove.

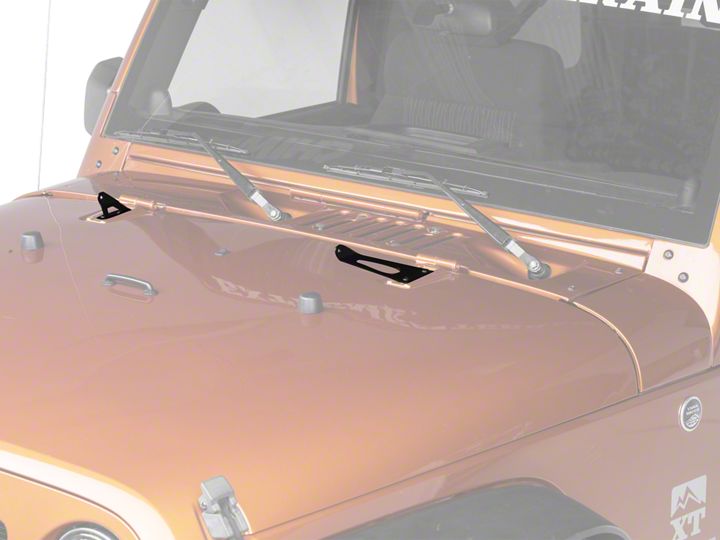

3. Install brackets using supplied hardware. Tighten Down Using 5mm Hex Bit. Passenger side orientation is shown in Figure 2.

4. Mount 20" light bar between brackets. (These brackets are designed for Putco 10020 Light Bar, Refer to Putco Light Bar Installation Instructions for mounting and wiring light bar.)
