Find Steering Components for your Wrangler

PSC Motorsports Big Bore XD Cylinder Assist Steering Gearbox (07-18 Jeep Wrangler JK)Find parts that fit my vehicle

Item J179113
Product Image

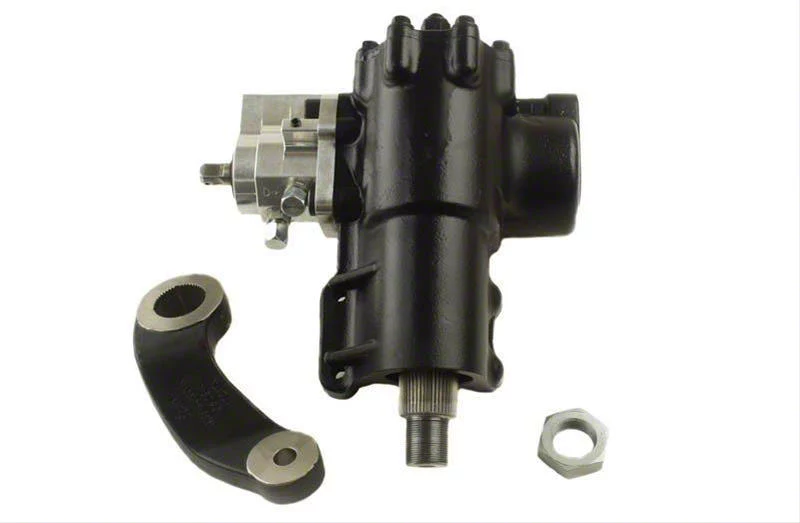

PSC Motorsports Big Bore XD Cylinder Assist Steering Gearbox (07-18 Jeep Wrangler JK)
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
2 Reviews
Our Price

$1,449.54 each

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Powerful Replacement Steering Gear
      • For Increased Steering Power and Reliability
      • Features Large 80mm Piston and 45mm Sector Shaft
      • Produces Up To 35% More Turning Force
      • Slower 16:1 Turning Ratio for Improved Performance
      • Engineered for Use on High-Pressure, 1800 PSI Pump
      • Features a Heavy-Duty Case
      • Direct Bolt-In Installation
      • 1-Year Limited Manufacturer Warranty
      • Fits All 2007-2018 Jeep Wrangler JK Models

      Description

      Increase Steering Power. Need a replacement for your stock or damaged steering gearbox? Upgrade to the PSC Motorsports BIG BORE XDII Cylinder Assist Steering Gearbox. This gearbox offers increased steering power and overall reliability to your Jeep Wrangler. It is designed to accommodate larger tire sizes, larger axles, and locking differentials. Unlike previous designs, this steering gearbox is fully tapped and ready for the optional lines for hydro assist rams.

      Offers Improved Turning Force. This BIG BORE XDII Steering Gearbox can produce up to 35% more turning force than your Jeep’s OE steering gear. This was made possible by replacing the 70mm piston assembly with the larger 80mm piston so the output torque is significantly increased. Such change will let your Jeep easily handle turning of tires with up to 37-inch size. To enable your Jeep to handle the extra torque output, the sector shaft is also increased from 35mm to 45mm.

      Heavy-Duty Quality. This steering gearbox is made with heavy-duty case and highly-reliable durability. All the mounting areas have been beefed up significantly to handle all the demands of increased steering force. More materials have also been added to the case in all mounting for a sturdier base.

      Direct Bolt-On Installation. Getting this BIG BORE XDII Cylinder Assist Steering Gearbox is a direct, bolt-on installation. The gearbox is made to fit precisely to your Jeep Wrangler and will not require complicated medications. However, some aftermarket additions may need minor adjustments.

      Installation Note. This gearbox has a larger size and may interfere with some aftermarket track bars. Some clearance issues may arise with hemi engine conversions or LS3 conversion.

      1-Year Limited Manufacturer Warranty. This BIG BORE XDII Steering Gearbox includes a limited 1-year manufacturer warranty. It provides coverage for defects in materials and workmanship only. This warranty is limited to the original purchaser and is not transferable to subsequent owners of the product. Failures caused by misuse, negligence, modification, abuse, improper application, installation or operation, or failures caused by unauthorized service or use of unauthorized parts are not covered.

      Application. The PSC Motorsports BIG BORE XDII Cylinder Assist Steering Gearbox is designed to fit 2007-2018 Jeep Wrangler JK models.

      Fitment:

      PSC Motorsports SG688R

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Steering Gearbox
      • Installation Hardware
