Pacbrake OnBoard Air with 2-1/2-Gallon Aluminum Air Tank (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

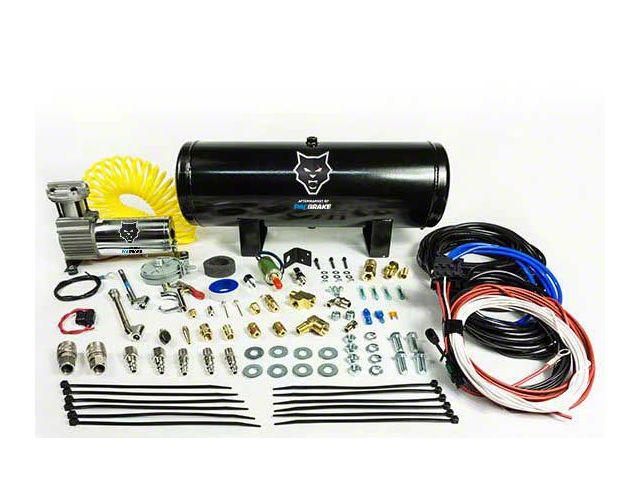

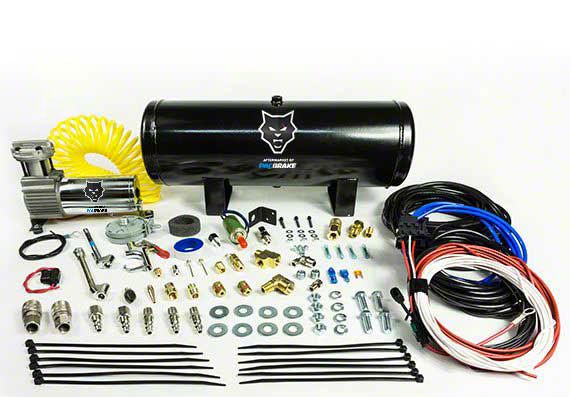

Description. Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories

Each Onboard Air System comes complete with:

HP325 Series 12V DC compressor (Part Number HP10143)

2 1/2 Gallon air tank (Part Number HP10013)

Fittings

Pressure switch

Relay(s)

Electrical connectors and all applicable accessories

Compressor Specifications

(Part Number HP10143)-12 VDC

100 percent (1 Hour at 100 PSI) duty cycle

1/4 HP

Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm

Weight is 5.5 lbs

Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

Aluminum Air Tank Specifications

(HP10013)-2 1/2 gallon capacity

5-3/8' NPT ports

Rust inhibitor applied to inside of tank

Max working pressure 150 PSI

Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)

Weight is 9.8 lbs

Welded on mounting brackets.
