Description, Q&A

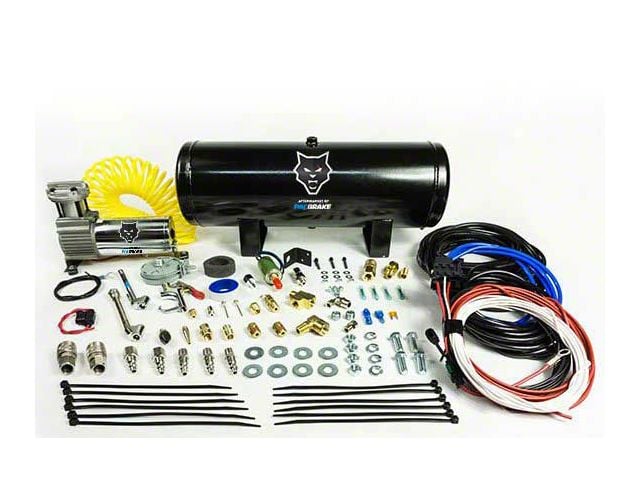

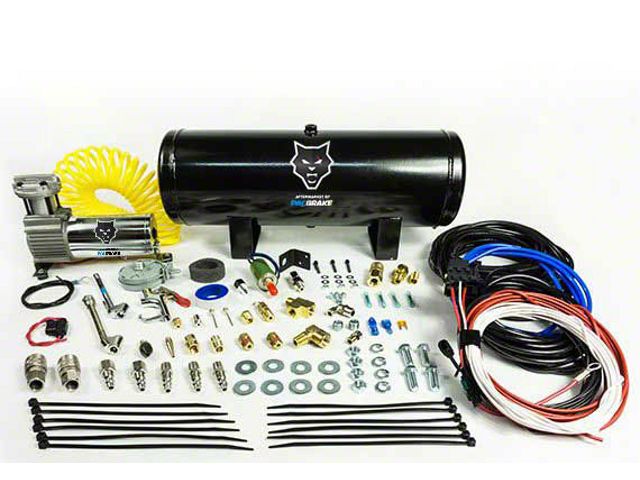

Description. Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories
Each Onboard Air System comes complete with:
HP325 Series 12V DC compressor (Part Number HP10143)
2 1/2 Gallon air tank (Part Number HP10013)
Fittings
Pressure switch
Relay(s)
Electrical connectors and all applicable accessories
Compressor Specifications
(Part Number HP10143)-12 VDC
100 percent (1 Hour at 100 PSI) duty cycle
1/4 HP
Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
Weight is 5.5 lbs
Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.
Aluminum Air Tank Specifications
(HP10013)-2 1/2 gallon capacity
5-3/8' NPT ports
Rust inhibitor applied to inside of tank
Max working pressure 150 PSI
Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
Weight is 9.8 lbs
Welded on mounting brackets.
Pacbrake HP10164-AL
