Pacbrake 12V HP625 Series Basic Heavy Duty Air Compressor Kit; Vertical Pump Head

Description. Pacbrake HP625 Series Basic 12V Air Compressor Kit (Vertical pump head)

Pacbrake’s heavy duty HP625 series air compressors have a 100% duty cycle (1 hour @ 100 psi), deliver 3/4 horsepower and are offered in two pump head configurations: vertical and horizontal.

Pacbrake offers various kit options for the HP625 air compressor.

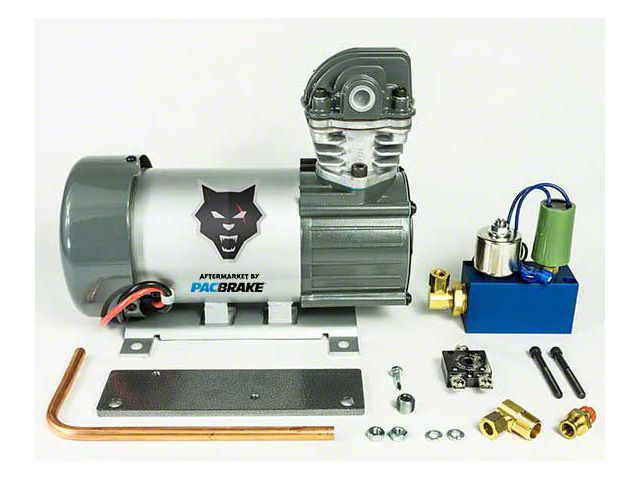

This Basic Air compressor kit comes with 12 VDC compressor with vertical pump head configuration and unloader block assembly.The unloader block is required for the HP625 series air compressor when used with an air tank.This kit DOES NOT INCLUDE the pre-built wiring harnessses.

COMPRESSOR FEATURES:

A copper wire wound permanent magnet motor

Oil-less design

Sealed bearings

Cast aluminum cylinder head

Hard anodized aluminum sleeve

PTFE piston ring

Mountable in any orientation

COMPRESSOR SPECIFICS:

Head Configuration: Horizontal

Compressor Model: HP10625H

Compressor Size: (LxWxH) : 11.5" x 9.5" x 6" [293 mm x 242 mm x 153 mm]

Compressor Weight: 18.5 lbs [8.4 kg]

Pacbrake’s heavy duty HP625 series air compressors have a 100% duty cycle (1 hour @ 100 psi), deliver 3/4 horsepower and are offered in two pump head configurations: vertical and horizontal.
