Pacbrake OnBoard Air with 2-1/2-Gallon Aluminum Air Tank (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Item XJ11418
Product Image
Pacbrake OnBoard Air with 2-1/2-Gallon Aluminum Air Tank (Universal; Some Adaptation May Be Required)
Verify parts fit and get product recommendations.
Cherokee Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$428.59

In Stock

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Description, Q&A

      Description

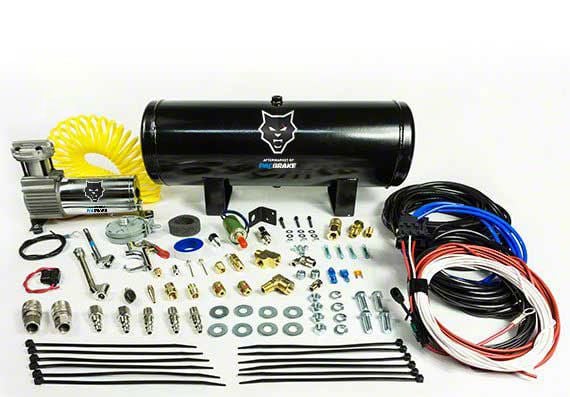

      Description. Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories

      Each Onboard Air System comes complete with:

      HP325 Series 12V DC compressor (Part Number HP10143)

      2 1/2 Gallon air tank (Part Number HP10013)

      Fittings

      Pressure switch

      Relay(s)

      Electrical connectors and all applicable accessories

      Compressor Specifications

      (Part Number HP10143)-12 VDC

      100 percent (1 Hour at 100 PSI) duty cycle

      1/4 HP

      Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm

      Weight is 5.5 lbs

      Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

      Aluminum Air Tank Specifications

      (HP10013)-2 1/2 gallon capacity

      5-3/8' NPT ports

      Rust inhibitor applied to inside of tank

      Max working pressure 150 PSI

      Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)

      Weight is 9.8 lbs

      Welded on mounting brackets.

      Pacbrake HP10164-AL
