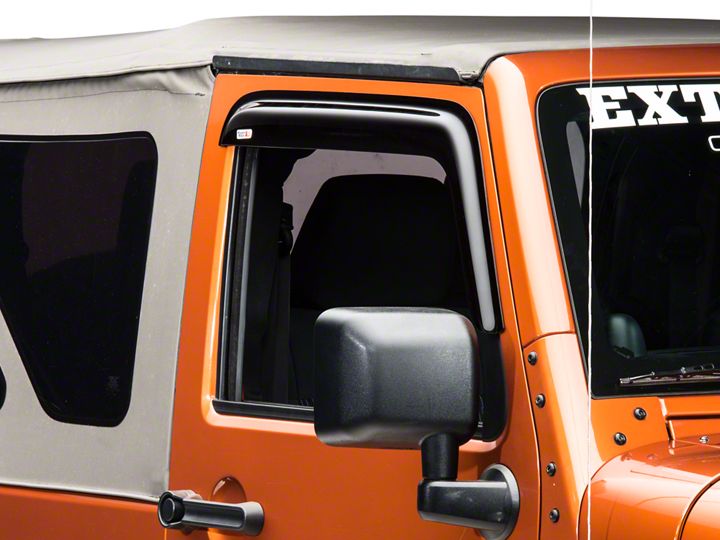

How to Install Rugged Ridge Smoked Acrylic Front Window Rain Deflectors on your 2007-2017 Jeep Wrangler JK

Note: Application and product my vary from illustrations.
Caution: Before driving, ensure that all deflectors are secured properly.

Please read all instructions before installation of Wind/Rain Deflectors

∙ Check and determine if Wind/Rain Deflectors are the correct fit for your vehicle.
∙ Wash and Clean all mounting surfaces of the vehicle using Isopropyl Alcohol (Rubbing Alcohol).
∙ To ensure proper bond apply only when temperatures of mounting surfaces is between 65-110°F.
∙ Be sure all mounting surfaces are dry before installation.

STEP 1 - Clean the painted surface where the deflector will be attached using Isopropyl Alcohol (Rubbing Alcohol).

STEP 2 - Hold and position deflector to determine mounting position.

STEP 3 - Remove 2” of tape liner from each end of the deflector.

STEP 4 - Place the deflector in a desired location on the door.

STEP 5 - Once the deflector is positioned, carefully pull and remove the tape liner. Apply firm pressure along mounting surfaces to secure.

STEP 6 - Apply same methods to the rear deflectors (if applicable)

∙ CAUTION - Before driving, check and ensure that all deflectors are properly mounted and secured to vehicle.

​∙ Periodically check and ensure that all deflectors are properly mounted and secure to vehicle.
