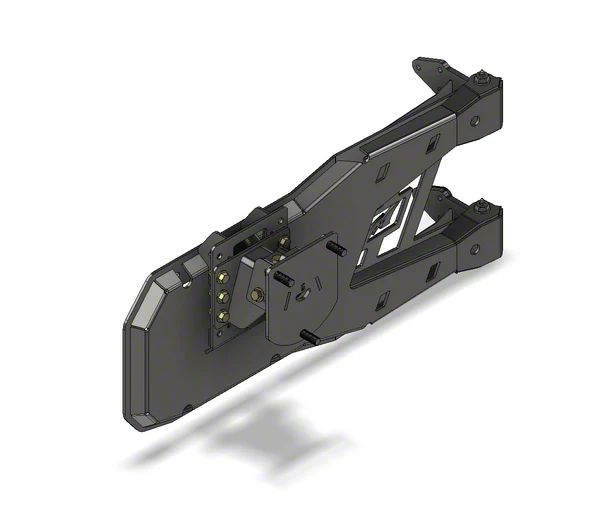

Motobilt Spare Tire Carrier for 8x170 Wheel Bolt Patterns (07-18 Jeep Wrangler JK)Find parts that fit my vehicle
Item J237241
$0.00
Our Price
$649.00
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A
Features & Specs
| Brand | Motobilt |
| Tire Carrier Type | Tire Carrier |
Description
DESCRIPTION
Motobilt introduces the Jeep JK and JKU 2007-2017 spare tire carrier for 8 x 170 wheel bolt pattern. This heavy duty tire carrier is a must have if you are running larger tires on your Jeep. The stock setup is not equipped to handle the extra weight of a larger tire and wheel setup. This JK tire carrier was designed using cutting edge computer modeling software. We laser cut, cnc form, and hand weld each unit to ensure it is perfect. We also engineered it to install easily with basic hand tools. Included are our provisions for our aftermarket high lift jack mount part number MB1085.
Specifications
Weight: 60lbs (approx.)
8 x 170 wheel lug pattern
3/16 inch laser cut and cnc formed steel
CAD designed for perfect fit
Will hold up to a 40 inch tire and up to a 37 inch tire with high lift jack together if equipped
CNC machine threaded inserts for Hi Lift Jack pre-installed 3/8”-16
12 mounting points vs the factory 4 mounting points
Multiple adjustments both vertically and front to back for optimal tire position
9/16”-18 lug studs
License plate relocation kit MB2025 works perfectly with the mount
Integrated design allows you to open and close easily with factory door handle
Will work with factory bumper or aftermarket bumpers.
Greasable mounting bolts at pivot points on hinges
Delrin hinge bushings with steel inner liners
Includes necessary mounting hardware
Includes hardware
Will not work with 3rd brake light in stock location
Weight = 56lbs
Our tires carriers are designed to fit a wheel backspacing of 4.25" to 5.5" with tires larger than stock. If you need a larger wheel backspacing, you can add a wheel spacer (not included).
Benefits:
- Easy to open and close
- Easy to bolt on Motobilt accessories
- Increased load capacity through additional mounting points
- Adjustable tire position allows clearance for up to a 40 inch tire
Related Parts-NOT included
Spare Tire Tag Relocation Mount PN# MB2025
High Lift Jack Mount PN# MB1085
Tag Delete Plug for Jeep JK/JKU PN# MB8003
Notes:Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
High lift jack mount NOT included but can be purchased separately. Part number MB1085. With jack mount installed the largest tire that will fit is 37 inches.
After market tail light covers may interfere when fully opened.
Motobilt introduces the Jeep JK and JKU 2007-2017 spare tire carrier for 8 x 170 wheel bolt pattern. This heavy duty tire carrier is a must have if you are running larger tires on your Jeep. The stock setup is not equipped to handle the extra weight of a larger tire and wheel setup. This JK tire carrier was designed using cutting edge computer modeling software. We laser cut, cnc form, and hand weld each unit to ensure it is perfect. We also engineered it to install easily with basic hand tools. Included are our provisions for our aftermarket high lift jack mount part number MB1085.
Specifications
Weight: 60lbs (approx.)
8 x 170 wheel lug pattern
3/16 inch laser cut and cnc formed steel
CAD designed for perfect fit
Will hold up to a 40 inch tire and up to a 37 inch tire with high lift jack together if equipped
CNC machine threaded inserts for Hi Lift Jack pre-installed 3/8”-16
12 mounting points vs the factory 4 mounting points
Multiple adjustments both vertically and front to back for optimal tire position
9/16”-18 lug studs
License plate relocation kit MB2025 works perfectly with the mount
Integrated design allows you to open and close easily with factory door handle
Will work with factory bumper or aftermarket bumpers.
Greasable mounting bolts at pivot points on hinges
Delrin hinge bushings with steel inner liners
Includes necessary mounting hardware
Includes hardware
Will not work with 3rd brake light in stock location
Weight = 56lbs
Our tires carriers are designed to fit a wheel backspacing of 4.25" to 5.5" with tires larger than stock. If you need a larger wheel backspacing, you can add a wheel spacer (not included).
Benefits:
- Easy to open and close
- Easy to bolt on Motobilt accessories
- Increased load capacity through additional mounting points
- Adjustable tire position allows clearance for up to a 40 inch tire
Related Parts-NOT included
Spare Tire Tag Relocation Mount PN# MB2025
High Lift Jack Mount PN# MB1085
Tag Delete Plug for Jeep JK/JKU PN# MB8003
Notes:Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
High lift jack mount NOT included but can be purchased separately. Part number MB1085. With jack mount installed the largest tire that will fit is 37 inches.
After market tail light covers may interfere when fully opened.
Fitment:
- 2007 Jeep Wrangler
- 2008 Jeep Wrangler
- 2009 Jeep Wrangler
- 2010 Jeep Wrangler
- 2011 Jeep Wrangler
- 2012 Jeep Wrangler
- 2013 Jeep Wrangler
- 2014 Jeep Wrangler
- 2015 Jeep Wrangler
- 2016 Jeep Wrangler
- 2017 Jeep Wrangler
- 2018 Jeep Wrangler
Motobilt MB1084-170
