Motobilt Rear Mounted Fuel Tank with Skid Plate; Bare Steel (07-18 Jeep Wrangler JK)Find parts that fit my vehicle

Item J174400
Product Image

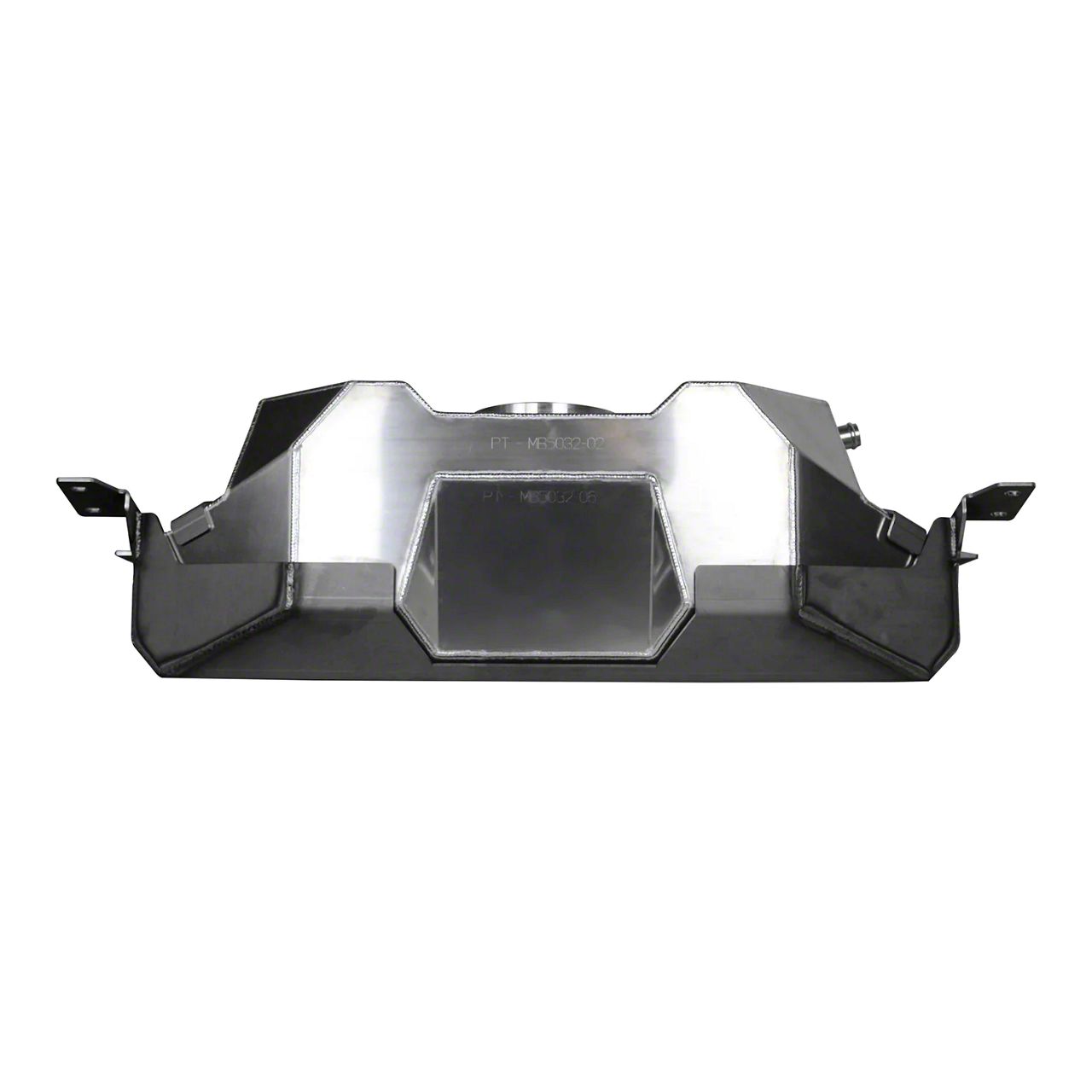

Motobilt Rear Mounted Fuel Tank with Skid Plate; Bare Steel (07-18 Jeep Wrangler JK)
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
Want $10? Write one of the first 5 reviews 4.0 Motobilt Engine product ratings
Our Price

$1,699.00 each

Up to 10% off for Military & First Responders! See Details

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

    Frequently Bought Together

      Product Information

      Description, Q&A, Specs & Installation

      Description

      The Motobilt relocation fuel tank moves the fuel tank from the center of the vehicle to the rear, behind the rear axle. Relocating the tank allows for more suspension and axle options as you upgrade your JK. This tank is designed to be completely bolt in and uses existing holes in your factory frame. No cutting of the frame is required. This tank is also compatible with the factory EVAP system so no tuning is required. The MB5034, included with the tank, will provide the necessary fuel lines and fittings to adapt it to your current emissions and fuel systems. We will also offer the EVAP kit as a separate product. The MB5032 fuel tank is designed to work with the factory fuel pump. The rear sway bar will need to be removed to use this tank.

      This tank allows you more options to modify your JK. With the tank relocated to behind the axle, you can use a 1 ton rear axle. Relocating the tank to behind the axle also allows use of a triangulated 4-link suspension setup.

      Designed as a heavy duty upgrade for the Jeep JK or JKU, this 22 gallon fuel tank features an all aluminum fuel cell constructed from 1/8” thick aluminum sheet that is precision CNC laser cut & CNC press brake formed. The tank is TIG welded for superior weld strength & weld finish. The fuel fill & vent tubes are CNC machined then TIG welded to the aluminum tank body. These machined parts are will still work with the factory fuel fill and vent.

      The Motobilt JK Fuel Cell is fully protected by a heavy duty 3/16” steel skid. The steel skid is fully MIG welded & perfectly mounts to your stock JK frame. The aluminum fuel tank is secured to the steel skid using two steel hold down straps.

      We have included the Motobilt In Tank Fuel Pump Extension Kit for Jeep JK/JKU with this fuel cell along with the EVAP Kit. (see Specifications). There is no need to purchase it separately.

      Weight: 110lbs (approx.)

      INSTALL NOTES:

      • Requires relocating the factory exhaust at the rear of the Jeep JK / JKU.
      • Requires removing the factory sway bar and installing a Currie Anti Rock Sway Bar. Simply purchase an Anti Rock rear sway bar for either a JK or JKU to match your application. CE-9900-JKR-JK2D (2 Door), CE-9900-JKR4-JK4D (4 Door)
      • The skid plate is shipped raw steel and will need to be painted or powder coated.
      • This tank works with the Motobilt JK / JKU Frame Chop Bumper Installed.
      • Recommended MB5019 (https://motobilt.com/products/jeep-jk-jku-fuel-access-hatch) Fuel Cell Access Hatch as the floor board must be cut to make room for the fuel tank.

      Fitment:

      Motobilt MB5032-MB5034

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Fuel Tank Assembly
