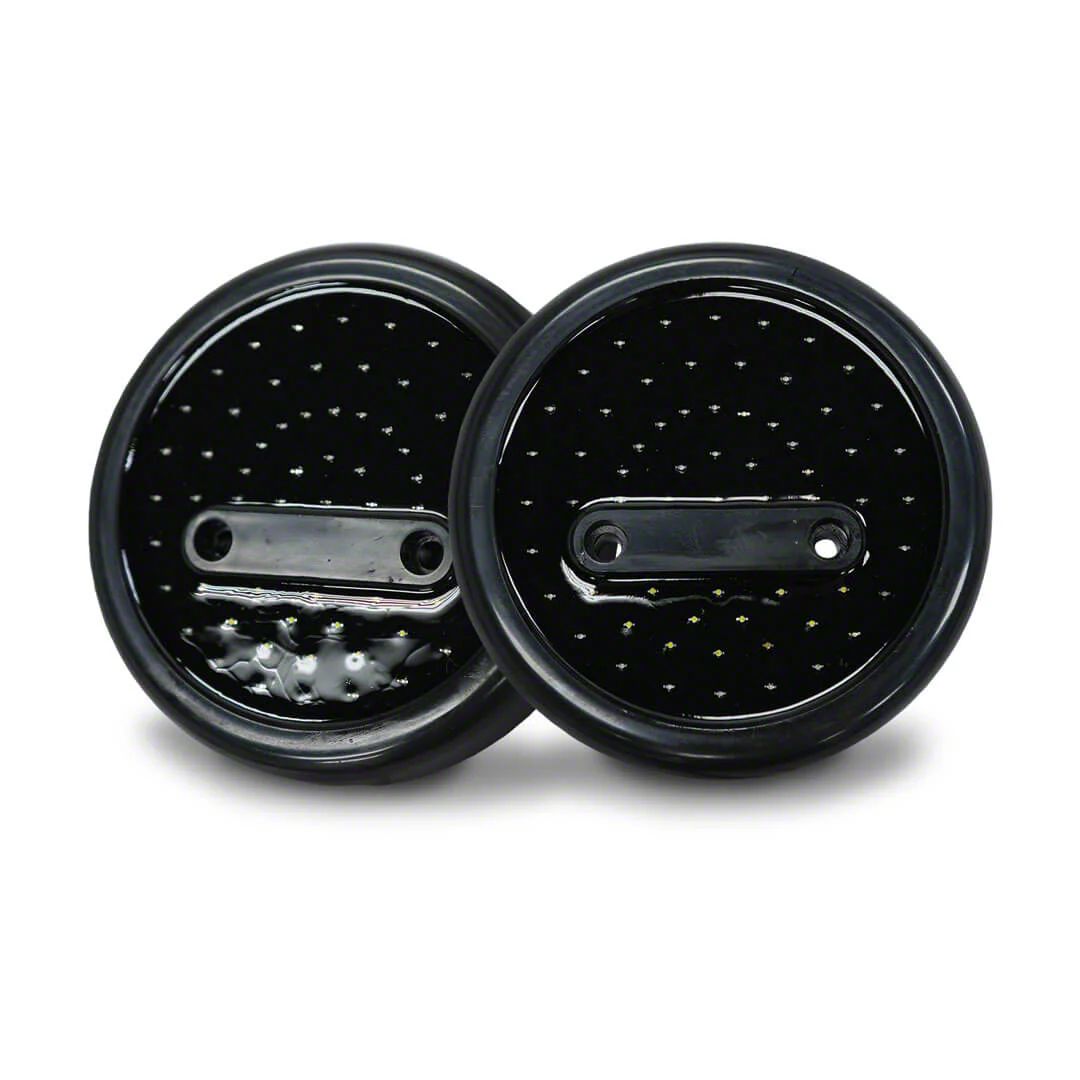

Motobilt 5-Inch Surface Mount LED Tail Lights; Black Housing; Smoked Lens (87-06 Jeep Wrangler YJ & TJ)Find parts that fit my vehicle
Item J237228
$0.00
Our Price
$149.00
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A
Features & Specs
Description
DESCRIPTION
Motobilt LED taillights have a rugged low profile with a unique eye catching design that enhances your vehicle’s appearance. They are constructed of the highest quality materials and completely sealed making them water proof and nearly indestructible.
Built with 100% Solid-state circuitry they are shock and vibration proof¹. The left and right housings incorporate running, stop, turn, and reverse indicators along with side marker lights. Designed as a replacement for Jeep® trailer style tailights, Motobilt taillights bolt onto Jeep® Wranglers™ TJs, YJs, and CJs without drilling.
Note: If not already installed, an LED rated flasher replacement is required to eliminate “Hyper Flash”. You will need an LED replacement flasher for 2001 to 2006 TJ’s that have the headlight switch on the turn signal stalk.
Models other than Jeep® Wrangler™ may require drilling to attach. OEM license plate mount on Jeep® TJ’s may require trimming to clear the taillight housing.
Features:
• These measure 5 inches in diameter and are mounted with 2 through bolts through the face
• High density pattern of 69 LEDs: 54 red, 12 white, and 3 red side markers per housing.
• High intensity LEDs deliver crisp, sharp light.
• Taillights appear black when off.
• Low profile housing measures less than 1″ thick.
• Housings made of high impact poly carbonate and a clear acrylic urethane lens.
• Materials are UV stabilized to resist discoloration.
• Adhesive reflector tape included to allow user to comply with most vehicle regulations.
• Solder seal connectors provided for connecting to OEM wiring harness.
NOTES:
When installing on corner guards, bobbed bed or any other type of body armor be sure to install a single washer behind the tail light with each of the mounting bolts.
Motobilt LED taillights have a rugged low profile with a unique eye catching design that enhances your vehicle’s appearance. They are constructed of the highest quality materials and completely sealed making them water proof and nearly indestructible.
Built with 100% Solid-state circuitry they are shock and vibration proof¹. The left and right housings incorporate running, stop, turn, and reverse indicators along with side marker lights. Designed as a replacement for Jeep® trailer style tailights, Motobilt taillights bolt onto Jeep® Wranglers™ TJs, YJs, and CJs without drilling.
Note: If not already installed, an LED rated flasher replacement is required to eliminate “Hyper Flash”. You will need an LED replacement flasher for 2001 to 2006 TJ’s that have the headlight switch on the turn signal stalk.
Models other than Jeep® Wrangler™ may require drilling to attach. OEM license plate mount on Jeep® TJ’s may require trimming to clear the taillight housing.
Features:
• These measure 5 inches in diameter and are mounted with 2 through bolts through the face
• High density pattern of 69 LEDs: 54 red, 12 white, and 3 red side markers per housing.
• High intensity LEDs deliver crisp, sharp light.
• Taillights appear black when off.
• Low profile housing measures less than 1″ thick.
• Housings made of high impact poly carbonate and a clear acrylic urethane lens.
• Materials are UV stabilized to resist discoloration.
• Adhesive reflector tape included to allow user to comply with most vehicle regulations.
• Solder seal connectors provided for connecting to OEM wiring harness.
NOTES:
When installing on corner guards, bobbed bed or any other type of body armor be sure to install a single washer behind the tail light with each of the mounting bolts.
Fitment:
- 1987 Jeep Wrangler
- 1988 Jeep Wrangler
- 1989 Jeep Wrangler
- 1990 Jeep Wrangler
- 1991 Jeep Wrangler
- 1992 Jeep Wrangler
- 1993 Jeep Wrangler
- 1994 Jeep Wrangler
- 1995 Jeep Wrangler
- 1997 Jeep Wrangler
- 1998 Jeep Wrangler
- 1999 Jeep Wrangler
- 2000 Jeep Wrangler
- 2001 Jeep Wrangler
- 2002 Jeep Wrangler
- 2003 Jeep Wrangler
- 2004 Jeep Wrangler
- 2005 Jeep Wrangler
- 2006 Jeep Wrangler
Motobilt MB6504
