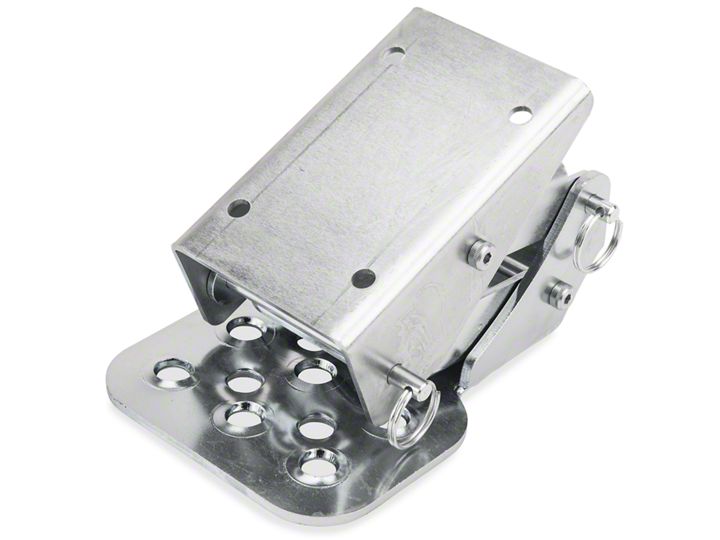

How to Install a M.O.R.E Hide-A-Step on your 1987-1995 Wrangler YJ

This step mechanism uses a very strong spring. Extra care should be used during installation and use to prevent injury to fingers and hands!

STEP 1:  Locate the step in the desired position.

STEP 2:  Remove the  two quick disconnect pins.

STEP 3:  Drill four 5/16” holes up through the floor using mounting plate as a pattern.

STEP 4: Install the bolts with nuts and washers through the backing plates and mounting plate

STEP 5:  Reinstall the two removable pins

The step has raised dimples to provide traction but care should be taken during use to prevent slipping.  Mud, ice, and snow  will make the step more slick.
