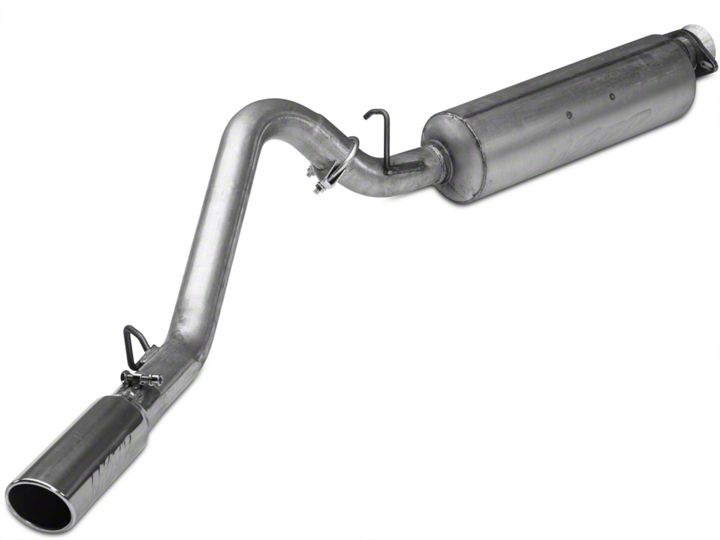

How to Install a MBRP Cat Back, Single Side, on your 2000-2006 Jeep Wrangler TJ
Shop Parts in this Guide
Removal of stock system:
1. Apply a penetrating lubricant liberally to all exhaust fasteners, hangers and rubber insulators.
2. Cut the exhaust pipe after the muffler to be able to remove it from the vehicle. Refer to Figure 1.
Figure 1
3. Remove the tail section of the exhaust by removing it from the rubber isolators. Refer to Figure 2.
Figure 2
4. Remove the hardware from the flange and remove the muffler. Refer to Figure 3.
Figure 3
Installation of MBRP Inc. Performance Exhaust:
1. Install the Muffler to the existing flange using the fasteners provided. Slide the Muffler hanger into the existing rubber isolator. Refer to Figure 4.
Figure 4
2. Slide a 2 ó” Clamp over the Muffler outlet then install the Tail Pipe to the Muffler. Install the Tail Pipe hanger into the existing rubber isolator. Refer to Figure 5.
Figure 5
3. Install and adjust the Exhaust Tip to suit. Using a 17mm wrench tighten the lock bolt located on the Exhaust Tip. Refer to Figure 6.
Figure 6
4. Align the exhaust as required. Starting at the front of the exhaust, tighten all clamps and connections.
5. Check along the whole length of the exhaust system to ensure that there is adequate clearance around the spare tire, fuel and brake lines or any wiring. If any interference is detected relocate or adjust.
Congratulations! You are ready to begin experiencing the improved power, sound and driving experience of your MBRP Inc. performance exhaust system. We hope you enjoy your purchase.
