2020-2025
Installation Time
(approx) 3 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Gladiator Sales Tech
1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find Leveling Kits for your Gladiator
Mammoth 2.50-Inch Front Leveling Kit with Shocks (20-25 Jeep Gladiator JT)Find parts that fit my vehicle
Item JG26176
Review & Install - Mammoth 2.50-Inch Front Leveling Kit with Shocks Video
See All Product Videos
(1)
$0.00
28 Reviews
Clearance Price
$349.99 kit
Out of Stock
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Add Local Installation
$999.00
Product Videos
(1)Merideth: What's up, guys? Merideth with extremeterrain.com, and today we're checking out the Mammoth 2.5-inch Front Leveling Kit, with Shocks, fitting all 2020 and newer JT Gladiator. The factory rake is super noticeable on the Gladiator, and if you would prefer a more level stance, whether it's to clear obstacles a little bit better, to fit a bigger tire, or just get a stronger appearance from your Gladiator, this kit will be a solution to all of those problems, without breaking the bank. This will also be for the JT owner who wants a bit more to a leveling kit than a spacer, for some better ride quality compared to their factory suspension, whether it's for on or off-road driving.The biggest feature here of this is really the increase in height for the front end compared to the back, which will make the truck much more defined in the appearance, and offer up a lot of opportunity for some better capability. Now, first thing, better ground clearance, allowing you to scale obstacles a little bit better in lighter off-road scenarios, and to fit larger tires, up to 33 inches, to be exact, if you want the best performance. Now, 35 will fit, but you may have some rubbing when you're articulating or flexing, so I would recommend sticking with a 33 for no modification. Now, along with the increase in height, the kit will also benefit you with new shocks that are the correct length, so your travel is not limited. A tighter and more responsive feel with these shocks is going to help with body roll, and you also are getting a longer lifespan, thanks to the monotube gas-charged construction. Now, that's gonna resist shock fade over time, allowing you to enjoy the ride, even with all of the abuse that these are going to see.The two major components here are the springs and the shocks, the springs being made of a powder-coated steel material, taller than the factory ones, for the lift, while maintaining the comfort that you would expect out of factory spring. Now, the shocks are going to offer that increase in dampening performance. Those are gonna be a little bit more complex, with a powder-coated steel body, a hard chrome OE-style piston rod here, and a gas-charged design, all being durable, resisting rust, impact damage, and any tough abuse, again, that they may see if you're taking your JT off-road. Now, the rest of the kit will include what you'll need for the accommodation in height, which is going to be new front end links here. These are made also of a steel material, powder-coated to match the rest of the kit, and resist any rusting. These are gonna have a high-density polyurethane bushing, which is much longer-lasting than the rubber ones, and it's going to help feel a little bit more controlled when it comes to your sway bar. You're also going to get a thick plastic bump stop extension, to prevent any tire contact with the fender, limiting the travel, to keep solid performance.Now, this kit will be about $400, which will be more than the average spacer lift, but much more affordable compared to other more inclusive lift kits. Now, the extra couple dollars compared to spacers will be a big step up in giving you some better handling and capability, in addition to the 2.5 inches, but it's not going to be super involved or too high in height if you want to keep it mild in both lift size and the parts that you want to replace on your JT. Now, it will have the necessities, being a solid entry-level type of lift kit, and a more advanced leveling kit, so you can kind of get the balance, and the best of both worlds of solid performance at a solid price point.Now, install is gonna be a 2 out of 3 wrenches on the difficulty meter, and with the right tools and setup, it should take about three hours to get the job done. Now, suspension is always an undertaking, so I do recommend taking your Jeep to a trusted shop, and after the install, you will need to make sure that you get your Jeep in alignment, to make sure that just everything is back in check. However, at this point, we can head over to our shop, and show you a detailed breakdown on how we install this, step by step, on our Gladiator, so you can check out the install whether you are tackling this job or you're just curious. So, that is gonna wrap it up for my review. Let's go ahead and get into the install.Man 1: The tools you'll need for this project are an impact gun, a 3/8 drive ratchet, a 15, an 18, and a 21-millimeter swivel socket, or a swivel joint and a 21-millimeter socket, a 6-millimeter, a 7/32 Allen wrench, a 14, an 18, and a 21-millimeter wrench, a pair of needle nose pliers, a pair of side cutters, a ratchet strap, and some zip ties.Hi, everyone. Today, we're installing a leveling kit on our Gladiator, so let's get started by watching a short video on how to uninstall the stock suspension.Man 2: So now, moving on to the front, first thing we're gonna do is remove our shock. We're gonna use an 18-millimeter socket and an 18-millimeter wrench. So, now we can take our 18-millimeter swivel socket and our 18-millimeter wrench, and remove this bolt. To make the bolt come out easier, we could raise up our pole jack, so it levels the bolt out with the mount. Now we can move it up to the top. So now, moving to the top, we're gonna remove this bolt with our 18-millimeter swivel socket. So, we could push our wheel well out of the way. We can remove our bolt. Hold your shock. And now your shock is removed. Now we can take a 15-millimeter swivel socket, and remove our brake line bracket. Set that off to the side, and we can thread our nut back on. So, now we're gonna remove our sway bar end link. We're gonna take our 18-millimeter wrench and our 18-millimeter swivel socket, and remove these two. So now, for our top nut, it's gonna be the same process as the rear. We're gonna take our 18-millimeter ratcheting wrench, slide that onto our nut, then our 6-millimeter Allen key. Can insert that into the stud. Now we can remove our nut. Now we could remove our tools. Can remove this, using our hand. Now you can repeat that process on the other side.Now that your shocks and sway bar end links are removed on both sides, we're gonna remove our track bar. So, we can take a 21-millimeter swivel socket, and a 13/16 or a 21-millimeter wrench, to remove this first bolt. Now we can take our 21-millimeter swivel socket, and remove this bolt. Make sure that you hold your track bar, because it will fall. Now your track bar is removed. Next, we're gonna remove our four-wheel-drive actuator. So, you can pull out on this white tab, and press down. Now we can remove. Now we'll remove our breather tube. We can take our needle nose pliers, press down on our clamp. We can work our breather tube off. Now we can remove our coils. So, now we're gonna evenly lower our pole jacks, so we could remove our coils. Now we're gonna come under, and slowly lower down our axle. Now we can remove our coil. We can bring down our rubber grommet too. Now you can repeat that process on the other side.Man 1: All right. Now we're ready to install our spring. And along with our spring, we have a bump stop extender as well. Now, if you put this on first, you're gonna find it very difficult to get the spring over the top of this isolator, or, I'm sorry, over this extender, because it sits right there. So you're gonna have an extra length that you're going to have to install this. So, what I like to do is just put the bump stop extender inside the coil spring, and then use a zip tie to zip-tie the bump stop extension to the coil spring. So, you can just let that hang in there, like so. And then you just have to deal with putting the spring in over the standard perch. Now, you just wanna make sure that the beveled side of the extender is towards the top of the spring. And the top of the spring is going to be this narrower coil at the very top. You'll see that it's very thin here, as far as where it's centered, as opposed to the bottom, which is all the way around. So, with that said, we can go ahead and install our spring, making sure that our lower spring coil here lines up with the stop on the isolator. Now, you also wanna make sure that the stock isolator for the bottom and the top of the spring are still in place. If not, you'll need to put them back in.So, let's go ahead and put our spring in now. Line up the end of our coil spring with the stop on the isolator. Go ahead and raise our jack, so that the coil has got some tension on it. And once we have that, we can go ahead and cut our zip tie. And now, using our beveled bolt and our nyloc lock nut, we can go ahead and get this installed. So, we'll slip this through. All right. Now, we'll put our bolt through the top of our bump stop extender. Make sure that it goes through the pre-drilled hole, and then we can put the not on the bottom. Now, on the driver side, this is relatively easy. So, now we'll put our nut up underneath our extender here. Start our bolt into the nut. Now, if you use a socket to start this, eventually you are gonna run out of space in the socket, so you're gonna have to switch to your 14-millimeter wrench.All right. Now we're ready to install our front shock. And you'll notice the difference between the front and the rear shock. The front shock has this long shoulder on the top of it here. So, we'll go ahead and put this back up into place, and then, using the original bolt, go ahead and secure it to the vehicle. And we'll tighten it down with our 18-millimeter socket. Now, as you can see, there's quite a difference between the bottom of the shock and the shock mount here, so now we can go ahead and raise our differential back up into place, get our holes lined up for our shock, and get those reattached at the bottom. Now, once you've got your holes lined up, go ahead and insert your bolt. Attach your nut. And tighten them down with your 18-millimeter wrench and your 18-millimeter socket. And now you can go ahead and repeat that whole process for the other side.Now, using the supplied nuts and flat washer and a bolt, we can go ahead and attach our new sway bar end link. And then tighten them down with our 18-millimeter socket and our 18-millimeter wrench. And you can repeat that for the other side as well. All right. Now we're ready to reinstall our track bar. So, we'll put this up into place up on the frame, insert our bolt, and put our nut on loosely for now. Now we can go to the other end. All right. Now, as you can see, our holes don't exactly line up now, because it shifted once we disconnected this. And we installed the new springs. So, we're gonna have to shift our differential over to the driver side, in order to be able to line up these holes. And one of the ways that you can do that is by using a heavy-duty ratchet strap, attach it to the frame, attach it to the axle, and then ratchet it until the holes line up. So, that's what we're gonna do here.All right. So, there's a hole on the outside of the frame, on the driver side, right behind the rear coil spring. So, we're gonna hook one end of our ratchet strap into that hole, and the other end, we're going to wrap around the support gusset right here, and attach it there. Now we can go ahead and just start ratcheting this in, slowly, so that we can shift the axle over, and get those holes lined up. Now check our alignment. Our holes are lined up, so we can go ahead and insert our bolt. Insert our nut. Now we can go ahead and tighten them down with our 21-millimeter socket and our 21-millimeter wrench. All right. Now we can go ahead and reattach our vent hose here. So, we'll squeeze the clamp with our needle nose pliers. Open it up. Get that attached. Now we'll go ahead and plug in our four-wheel-drive monitor. Make sure you push in on the locking tab. Now we can reattach our brake line bracket. And tighten that down with our 15-millimeter socket. And now you can go ahead and attach the brake line bracket for the other side, and your front installation is complete.Now, for the rear, we're gonna remove the shock, doing this lower mount first, using our 21-millimeter socket and our 21-millimeter wrench. And you might wanna support the rear end, and raise it up a little bit, to take some of the tension off the suspension. And that'll get your lower bolt out. All right. Now we'll do the same thing for the upper. Make sure you hold your shock, so it doesn't fall. And it's out. Now we can install our new shock, by reversing the procedure for uninstall. We'll put the upper into place. Go ahead and use our 21-millimeter socket to help get it in. Attach our nut. All right. Now we can install our lower shock mount bolt, and tighten it up with our 21-millimeter socket and our 21-millimeter wrench. Now we'll tighten up our upper bolt as well. And you can repeat that process for the other side.Merideth: So, that is going to wrap it up for my review and the install of the Mammoth 2.5-inch Front Leveling Kit, with Shocks, fitting all 2020 and newer JT Gladiators, and you can find this kit right here at extremeterrain.com.
View Full TranscriptNow Playing
Jeep Gladiator JT Mammoth 2.50-Inch Front Leveling Kit with Shocks Review & Install
20:34
Subscribe: New Gladiator videos daily!
Subscribe to our YouTube Channel
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Front Leveling Kit - 2.5-inch Lift
- Corrects Factory Rake for a Level Stance
- Increases Front Ground Clearance
- Mono Tube Shocks - Non-adjustable
- Linear Rate Coil Springs
- Front Sway Bar Links
- Direct Bolt-on Installation
- Fits 2020-2025 Jeep Gladiator JT Models
| Brand | Mammoth |
| Leveling Kit Location | Front |
| Leveling Kit Lift Height | 2.50 Inch |
| Leveling Kit Includes Shocks | Shocks Included |
Description
Eliminates Factory Rake. Eliminate your 2020-2025 Jeep Gladiator JT's original factory rake by raising the front 2.5 inches with a Mammoth Leveling Kit. This Mammoth Kit not only levels out your Gladiator, but it will also provide additional tire clearance as well.
Monotube Shocks. Manufactured using a gas pressurized mono tube design, the included Shock Absorbers feature a mirror-finished, hard-chrome OE style piston rod that provides superior corrosion resistance and leak free sealing. While the combination of premium Eneos Oil and Freudenberg NOK seals ensures a great seal, long-life and consistent dampening over a wide range of temperature conditions to maintain dampening and rebound. These Monotube Shocks feature an outer steel housing that is completed in a durable black finish for impressive good looks.
Coil Springs. The front coil springs included in this Mammoth 2.5-inch Front Leveling Kit have been engineered to work perfectly in conjunction with the other components of the kit. These springs will not only aid in lifting your Gladiator for increased clearance, but they will also help to provide a smooth comfortable ride.
Sway Bar End Links. The included front Sway Bar End Links were designed to work with the new lifted ride height of this Kit. Manufactured from steel these, Sway Bar End Links feature high-density polyurethane bushings which are much more durable than the original stock rubber units to provide years of trouble free driving
Installation. This Front Leveling Kit was engineered to be installed with no welding or cutting needed, making it a bolt-on kit. However, professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 2-4 hours time. Please note that an alignment is highly recommended after installation.
Application. This Mammoth 2.50-Inch Front Leveling Kit with Shocks is designed to fit 2020-2025 Jeep Gladiator JT models.
Monotube Shocks. Manufactured using a gas pressurized mono tube design, the included Shock Absorbers feature a mirror-finished, hard-chrome OE style piston rod that provides superior corrosion resistance and leak free sealing. While the combination of premium Eneos Oil and Freudenberg NOK seals ensures a great seal, long-life and consistent dampening over a wide range of temperature conditions to maintain dampening and rebound. These Monotube Shocks feature an outer steel housing that is completed in a durable black finish for impressive good looks.
Coil Springs. The front coil springs included in this Mammoth 2.5-inch Front Leveling Kit have been engineered to work perfectly in conjunction with the other components of the kit. These springs will not only aid in lifting your Gladiator for increased clearance, but they will also help to provide a smooth comfortable ride.
Sway Bar End Links. The included front Sway Bar End Links were designed to work with the new lifted ride height of this Kit. Manufactured from steel these, Sway Bar End Links feature high-density polyurethane bushings which are much more durable than the original stock rubber units to provide years of trouble free driving
Installation. This Front Leveling Kit was engineered to be installed with no welding or cutting needed, making it a bolt-on kit. However, professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 2-4 hours time. Please note that an alignment is highly recommended after installation.
Application. This Mammoth 2.50-Inch Front Leveling Kit with Shocks is designed to fit 2020-2025 Jeep Gladiator JT models.
Fitment:
- 2020 Jeep Gladiator
- 2021 Jeep Gladiator
- 2022 Jeep Gladiator
- 2023 Jeep Gladiator
- 2024 Jeep Gladiator
- 2025 Jeep Gladiator
Mammoth JG26176
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

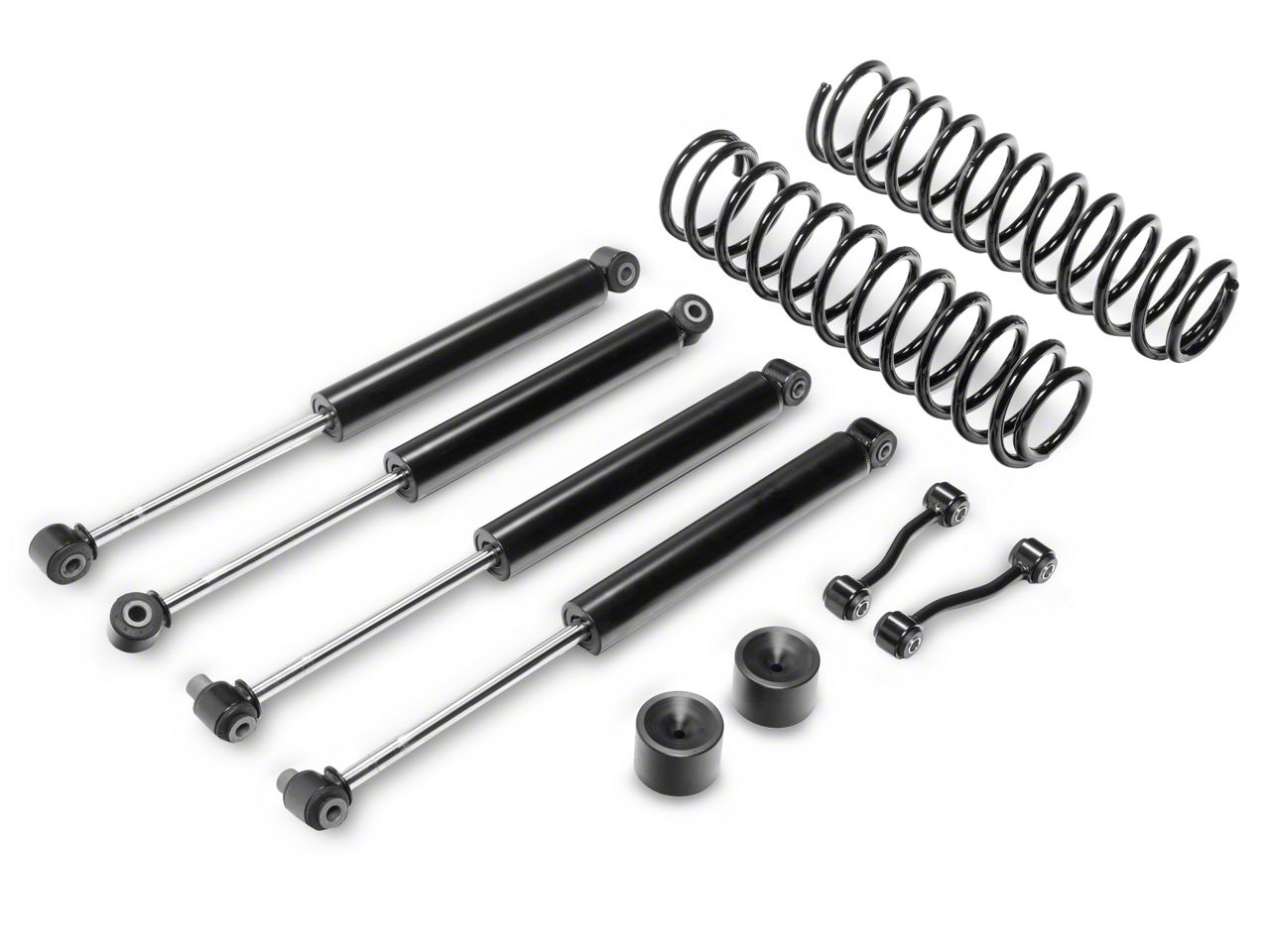

What's in the Box
- (2) Front Springs
- (2) Front Shock Absorbers
- (2) Front Sway Bar Links
- (2) Rear Shock Absorbers
- (2) Bump Stop Extensions
- (4) M12x1.75 x 65mm Bolts
- (4) M12 Flat Washers
- (4) M12 Locking Flange Nuts
- (2) M10x1.50 x 60mm Tapered Bolts
- (2) M10 Flange Nuts
4.9
Customer Reviews (28)
Questions & Answers
No questions about this product yet.
Ask the First Question
