      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Digital Gauge Cluster
      • Red LED Illumination
      • Speedometer Reads up to 255 MPH
      • Tachometer Reads up to 9,900 RPM
      • Water Temperature Displays 100 - 300°F Range
      • Oil Pressure Displays 0 - 100 PSI Range
      • Voltmeter Displays 7.0 - 25.5 Volt Range
      • Fuel Level Displays 0 - 99% Range
      • Built-in 0-60 Time, 1/4 Mile ET, and High Speed Recall
      • High Beam, Turn Signal, Brake, and 4WD Indicators
      • One-Button Calibration
      • Smoked Plexiglass Faceplate
      • Requires Wiring - Professional Installation Recommended
      • Fits all 1997-2006 Jeep Wrangler TJ Models

      Description

      Digital Red LED Gauge Panel. This visually striking and fully functional Red LED Digital Gauge Panel is an excellent way to update your 1997-2006 TJ Wrangler's interior. This Gauge Panel boasts bright red LED illumination and a dark smoked Plexiglas faceplate for impressive good looks. With its sleek, futuristic design you can't but marvel at your dashboard every time you start your engine.

      Monitor Your TJ's Performance. Although these LED Gauges look far different than your stock analog gauges, they can effectively display your TJ's performance and condition. The speedometer reads up to 255 MPH and features an odometer and trip odometer. The tachometer reads 0-9,900 RPM in 100 RPM increments. The water temperature reads within the 100-300°F range. The oil pressure reads within the 0-100 PSI range. The voltmeter reads within the 7.0-25.5 range. The fuel level reads within the 0-99% range in 1% increments.

      Measure 0-60 Times. Another really cool feature of this Digital Gauge Panel is that it allows you to measure your 0-60 time, 1⁄4 mile elapsed time, and it features a high speed recall, all with just a push of a button. By keeping track of your 0-60 and 1/4 mile times you can see the difference your latest go fast mods have made.

      High Quality Modern Electronics. Manufactured to precise standards from high quality materials, this LED Digital Gauge Panel is assembled using state of the art electronic components. This Digital Gauge Panel is built to last and features over current protection, short circuit protection, and over voltage protection.

      Requires Wiring - Professional Installation Recommended. Installation of this is Digital Gauge Panel is designed to be straight forward, but can become involved because of the required wiring and need to install/replace sending units/sensors. So, professional installation is highly recommended. However, once installed this Digital Gauge Panel features a one-button calibration mode that works regardless of tire size, gear ratio, or transmission. Installation instructions are included.

      Application. This Red Illuminated LED Digital Gauge Panel is designed to fit all 1997-2006 Jeep Wrangler TJ models. Please note this Digital Gauge Panel reuse the factory housing/bezel. The temperature sender features a 1/2-inch thread. If your OE sender has a different thread size, you will need to purchase an adapter - not included.

      Fitment:

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

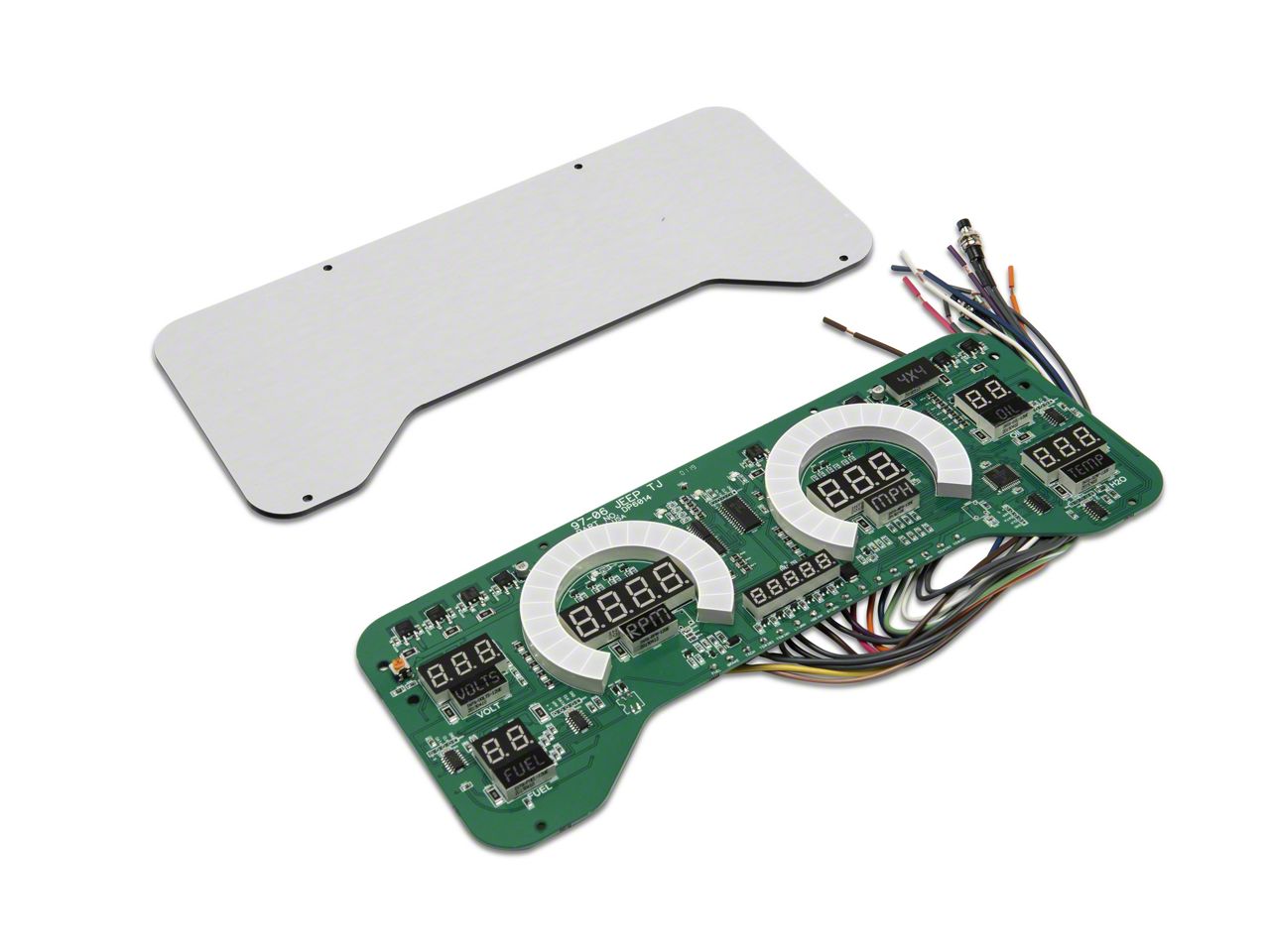

      • Printed Circuit Boards
      • Smoked Plexiglas Faceplate
      • Universal Temperature Sending Unit
      • Oil Pressure Sending Unit
      • Speedometer (Sender/Sensor) Unit for vehicles without electronic transmission or cruise control
      • Installation Instructions
