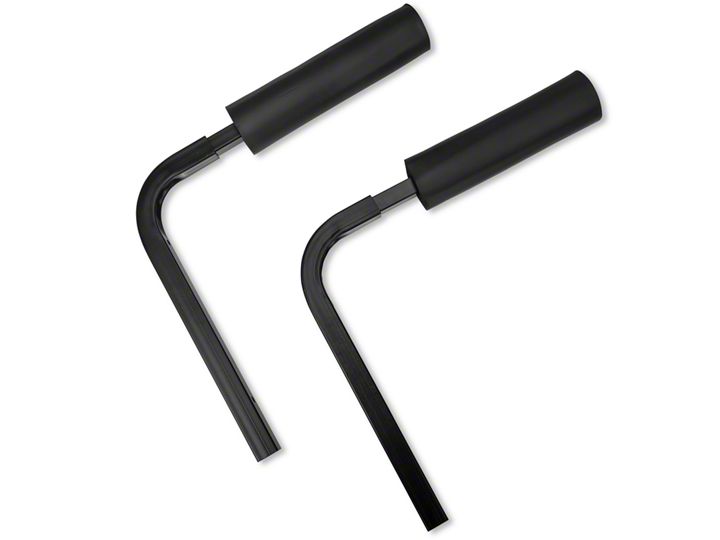

How to Install Lange Door Hangers (87-18 Wrangler YJ, TJ, JK & JL) on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Box Cutter/Knife
- Stud Finder
- Drill
- 1⁄4" Drill Bit
- 10mm Socket
- Socket Wrench
- Pen/Pencil
- Philips Head Screwdriver
Shop Parts in this Guide
1. Using a stud finder, locate a stud along the section of wall intended to mount the door hangers from (Figure A).
Figure A
2. Mark first screw location (Figure B).
Figure B
3. Place the door hanger where the first screw location mark is aligned and mark the second screw location.
4. Drill a pilot hole using a 1⁄4" drill bit in both marked locations (Figure C).
Figure C
5. Place the door hanger, aligned with the pilot holes, back on the wall.
6. Using a 10mm socket, start a bolt in both locations (Figure D).
Figure D
7. Tighten both bolts until they are flush with the door hanger (Figure E).
Figure E
8. Locate the next closest stud using a stud finder and mark the two mounting holes level with the door hanger already installed (Figure F).
Figure F
9. Repeat Steps 4-7 in mount the second door hanger (Figure G).
Figure G
10. Slide a hanger into each mounted arm and start both screws in the top of each hanger (Figure H).
Figure H
11. Using a mallet, hammer a black plastic end cover into each of the four openings of the two hangers (Figure I).
Figure I
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 07/13/2018
