KC HiLiTES Hybrid Front Bumper LED Light Kit; SAE System (21-24 Bronco w/ Aftermarket Hybrid Bumper)Find parts that fit my vehicle

The Hybrid Front Bumper SAE LED Lighting Kit is a comprehensive lighting solution, meticulously designed to enhance both the aesthetic appeal and functionality of your off-road vehicle. With components engineered for versatility and performance, this kit delivers unparalleled lighting coverage, whether you're navigating through foggy mornings or embarking on nocturnal off-road adventures.

LIGHTS INCLUDED
-FLEX ERA® 3 Dual Mode SAE Fog Lights: Dual-mode functionality offers a street-legal SAE J583 fog beam for on-road use and then adds a high-output Spot Beam with the fog mode for off-road adventures, complete with both clear and selective yellow lenses.
-FLEX ERA® 1 Lights: Master kit comes with various beam pattern lenses, providing flexibility in mounting and illumination to fit your needs perfectly.

FEATURES
-Versatile Lighting Options: From legal fog lights to high-power off-road illumination, this kit covers all bases.
-Dual Modes: Easily switch between on-road and off-road settings to suit your journey's requirements.
-Full Trail Coverage: Combines the precision of SAE Driving/Fog beams with the expansive visibility of off-road beam patterns.
-Easy Installation: Designed for aftermarket hybrid bumpers, ensuring a perfect fit for brands like CBI, C4 Fabrication, and more, with no complicated wiring required.
-Customizable Aesthetics: Standard gold bezels with options in red, blue, or black, allowing you to personalize your setup.
-Upfitter-Specific Harness: Tailored for easy installation, this harness connects the fog lights and backlights to two switches on your vehicle's upfitter switches or aftermarket switch system, featuring one power wire for the Street Mode and another for the Off-Road Mode on all six lights. Note - this harness does not include its own switch.

**Note: Included Upfitter / Aftermarket Switch System Wiring Harness does not include its own switch, it is designed to be used with an auxiliary switch system that has onboard fuses and relays.

Recommended Fuse Sizes
-SAE/Low Power Mode – 15 AMP Fuse
-High Power Mode – 25 AMP Fuse

POWER MODES
-Street Mode: The FE3s turn on with the SAE Fog Beam activated, while the Amber Backlights on the FE1s illuminate as well.
-Off-Road Mode: The high-power mode on both the FE3s and FE1s turns on; the FE3s feature a fog beam plus a spot beam.

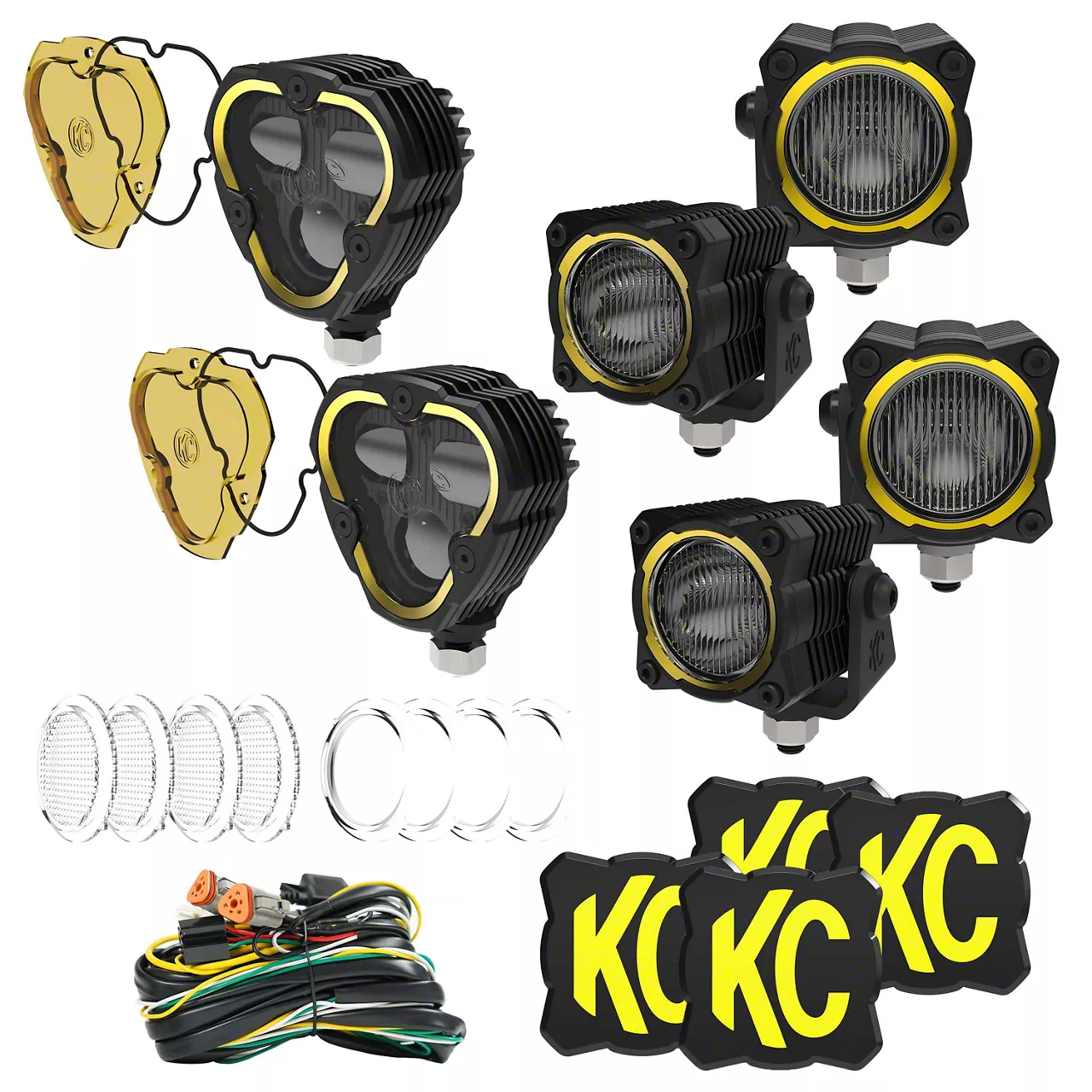

WHAT'S IN THE BOX
-(1) Upfitter / Aftermarket Switch System Wiring Harness
FLEX ERA® 3 Dual Mode SAE Fog Lights:
-(2) FLEX ERA® 3 Dual Mode SAE Fog Light
-(1) Driver Side Bracket
-(1) Passenger Side Bracket
-(2) FLEX ERA® 3 SAE Clear Combo Beam Lens (pre-installed)
-(2) FLEX ERA® 3 SAE SAE Selective Yellow Combo Beam Lens
-(2) FLEX ERA® 3 Lens Replacement O-Ring
FLEX ERA® 1 Lights:
-(4) FLEX ERA® 1 Light in Spread Beam Pattern
-(2) Driver Side Bracket
-(2) Passenger Side Bracket
-(4) FLEX ERA® 1 Flood Beam Lens
-(4) FLEX ERA® 1 Spot Beam Lens
-(4) FLEX ERA® 1 KC Logo Black / Yellow Cover
-(4) FLEX ERA® 1 Lens Replacement O-Ring

Fitment:

• 2021 Ford Bronco
• 2022 Ford Bronco
• 2023 Ford Bronco
• 2024 Ford Bronco
