How to Install KC HiLiTES 2 in. C-Series C2 LED Light Bar - Flood Beam on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Allen Wrench
- 10mm Socket Wrench
- 13mm Socket Wrench
- Light Wiring Harness
Shop Parts in this Guide

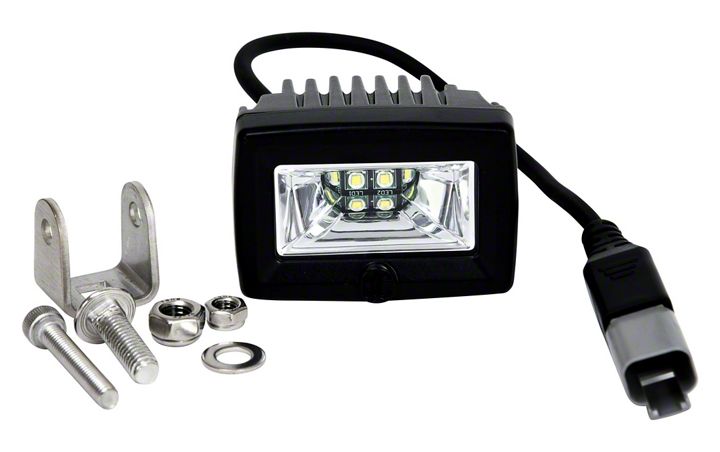

1. Place the mounting hardware out next to the LED (Figure A).
Figure A
2. Insert the bolt with the square centering into the metal mounting piece before placing the mount on the LED (Figure B).
Figure B
3. Align the metal mounting piece with the LED mounting holes (Figure C).
Figure C
4. Run the smaller bolt through the holes (Figure D).
Figure D
5. With the smaller bolt all the way through, thread the smaller washer to hold it in place (Figure E).
Figure E
6. Using an Allen wrench and 10mm socket wrench, tighten the washer down so that the metal mounting piece is secured into place (Figure F).
Figure F
7. Slide a flat washer over the mounting bolt (Figure G). Then, using a 13mm socket wrench, tighten the bolt onto the desired LED mounting location.
Figure G
8. Connect the LED to a light wiring harness (not provided) to provide power.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 09/26/2018
