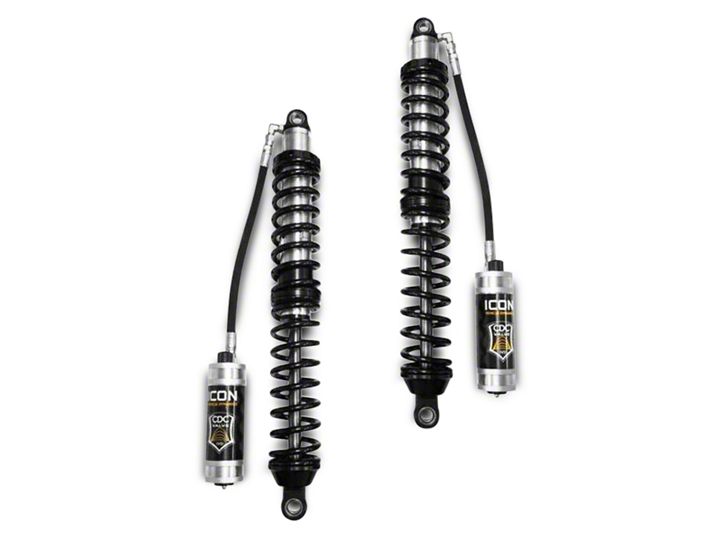

How to Install ICON Vehicle Dynamics V.S. 2.0 Series Front Remote Reservoir Coil-Overs w/ CDCV for 1.75-4 in. Lift (07-17 Wrangler JK) on your Jeep Wrangler

1. REQUIRES USE OF ICON FRONT COILOVER CONVERSION SYSTEM (22003).

2. YOUR ICON COILOVER ASSEMBLIES COME FACTORY CHARGED TO 250 PSI. RELEASING NITROGEN PRESSURE MAY LEAD TO SHOCK MALFUNCTION AND REDUCED RIDE QUALITY. FAILURE CAUSED BY LOW NITROGEN PRESSURE IS NOT COVERED UNDER ICON’S WARRANTY POLICY.

3. YOUR ICON COILOVER ASSEMBLIES COME SHIPPED AT ICON’S RECOMMENDED RIDE HEIGHT. REDUCING DROOP TRAVEL WILL REDUCE RIDE QUALITY. DO NOT PRELOAD THE COIL BEYOND 3.25” OF EXPOSED THREADS BETWEEN THE BOTTOM OF THE TOP CAP AND THE COIL ADJUSTER NUT. ADJUSTING PRELOAD BEYOND THIS SETTING WILL CAUSE THE COIL TO BIND AND DAMAGE WILL OCCUR TO COILOVER AND/OR VEHICLE.

4. AT MAXIMUM LIFT HEIGHT (4”) THESE SHOCKS WILL MEASURE 23.125” FROM EYE TO EYE, DO NOT EXCEED THIS MEASUREMENT OR YOU MAY EXPERIENCE A REDUCTION IN RIDE QUALITY.

5. THIS KIT WAS CONFIGURED BASED ON A STOCK 6 CYLINDER 4 DOOR JK, AFTERMARKET ACCESSORIES WILL ALTER RIDE HEIGHT. 2 DOOR JK MODELS WILL SIT APPROXIMATELY 1” TALLER.

** READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH BEFORE BEGINNING INSTALLATION! IF THESE INSTRUCTIONS ARE NOT PROPERLY FOLLOWED SEVERE FRAME, SUSPENSION AND TIRE DAMAGE MAY RESULT TO THE VEHICLE!

** ICON VEHICLE DYNAMICS RECOMMENDS THAT YOU EXERCISE EXTREME CAUTION WHEN WORKING UNDER A VEHICLE THAT IS SUPPORTED WITH JACK STANDS.

** ICON VEHICLE DYNAMICS RECOMMENDS ALL INSTALLTION TO BE PERFORMED BY A PROFESSIONAL SHOP/SERVICE TECHNICIAN. PRODUCT FAILURE CAUSED BY IMPROPER INSTALLATION WILL NOT BE COVERED UNDER ICON’S WARRANTY POLICY.

1. Refer to ICON front coilover conversion system (22003) installation instructions.

ICON shock absorbers are a high quality rebuildable race style shock absorber designed for optimal performance. With a unit of this caliber on your vehicle, routine maintenance is required to keep them looking and operating in like new condition. Residual oil and assembly lube may be present at all seal paths from the factory out of the box and is considered normal. Pooling of oil however is not acceptable at any time and one should contact the iCON dealer where purchased.

BELOW ARE GUIDELINES BASED ON HOW YOU USE YOUR VEHICLE BUT YOUR MILEAGE MAY VARY:

STREET USE:

• Send in for factory servicing every 40,000 miles or if a leak develops, ride quality decreases, or they begin to make excessive noise.

• Remove any buildup of road salt, mud, or debris from shocks and coil springs anytime accrued

• Clean with mild soap and water with each oil change or anytime you notice build up.

• Wax the cylinders yearly with automotive wax to prevent corrosion.

• Check nitrogen pressure yearly. (252004 charge needle assembly available at any ICON distributor)

• Check bearings for excessive wear yearly.

• DO NOT apply any type of lube to the upper and lower bearings.

STREET/DIRT:

• Send in for factory servicing every 15,000 miles or if a leak develops, ride quality decreases, or they begin to make excessive noise.

• Clean with mild soap and water with each oil change, offroad trip, or anytime you notice build up.

• Wax the cylinders yearly with automotive wax to prevent corrosion.

• Check nitrogen pressure each dirt outing. (252004 charge needle assembly available at any ICON distributor)

• Check bearings for excessive wear yearly.

• DO NOT apply any type of lube to the upper and lower bearings.

DIRT USE:

• Send in for factory servicing every 1,000 miles.

• Check nitrogen pressure each outing. (252004 charge needle assembly available at any ICON distributor)

• Remove any buildup of mud or debris from shocks and coil springs after every outing.

SELF-SERVICE:

• Contact ICON for service kits & tools at (951) 689-4266.
