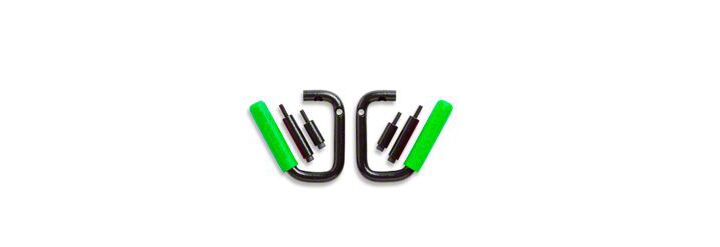

How to Install GraBars Front Grab Handles w/ Green Grips (07-18 Jeep Wrangler JK) on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- 13mm Socket
- Socket Wrench
- 6mm Allen Wrench
Shop Parts in this Guide
1. Locate the two inner bolts at the top corner of the passenger's door frame (Figure A).
Figure A
2. Using a 13mm socket wrench, remove the lower of the two corner bolts (Figure B).
Figure B
3. Using a 13mm socket wrench, remove the upper of the two corner bolts (Figure C).
Figure C
4. Place the shorter of the two bolts through the passenger-side Grabar (Figure D).
Figure D
5. Set the shorter spacer on top of the passenger Grabar (Figure E).
Figure E
6. Hand-thread the bolt into the top hole of the two bolts removed (Figure F).
Figure F
7. Slide the longer spacer in between the Grabar and the frame and insert the longer bolt (Figure G).
Figure G
8. Using a 6mm Allen wrench, tighten the bolts into place (Figure H).
Figure H
9. Repeat Steps 1-8 on the driver's side.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/19/2018
