EVO Manufacturing High Clearance Long Arm Upgrade Kit (18-24 Jeep Wrangler JL 4-Door)Find parts that fit my vehicle

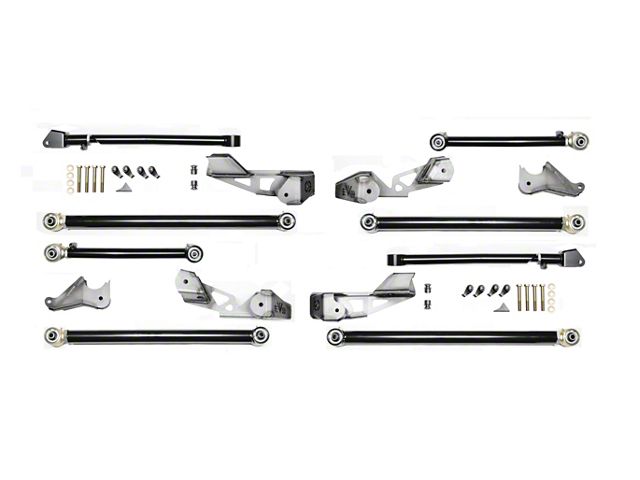

Description. EVO MFG JLU High Clearance Long Arm Upgrade

The EVO MFG JLU High Clearance Long Arm upgrade kit through specificallydesigned bracketry allows for ultimate in suspension and chassisclearance, larger wheel travel ability, optimal suspension geometry withincreased ride quality.

Clearance, ride quality, performance and ease of installation was ourfocus in creating this long arm suspension system. The front arms mounttucked up inside nearly flush with the bottom of the frame mountinginches above the stock front lower mounting bracket. The rear mountinglocations for the long arm are on the side of the frame, above thebottom giving inches of clearance over the factory locations as well.Keeping optimal geometry while maintaining as much clearance wascritical in the design of this system. In doing so, not only did weraise the rear control above the frame but we raised its mounting at therear axle by multiple inches as well. This allows for an incredibleground clearance increase but just as importantly retaining flat andoptimal control arm angles giving ideal ground clearance, smooth ridequality and long travel ability.

The mounting brackets are specifically designed to require no exhaustcutting on 3.6L Jeep Wrangler JLU’s (minor grind/clearance to flangerequired) and have full length hard-face mounting surfaces that weld toyour frame giving redundant and ample welding area and strength to theirmounting. The mounting brackets align to the frame simply usingexisting factory holes giving complete assurance of proper locatingduring install. Simply bolt brackets up to frame with existing hardwareand weld them in place.

EVO MFG Long Arm joints feature Johnny Joints on both ends of thecontrol arms for restriction free articulation and motion with nowearable and limited bond rubber. All EVO MFG lower long arms are built with strength in mind.

These arms are made from industry leading 2.0” x .281” wall Steel DOM Tubing.The EVO MFG JLU High Clearance Long Arm Upgrade is generally used toconvert your current short/mid arm suspension to long arm by reusingsome of your current suspension lift parts like coil springs, swaybarlinks, bumpstop extension etc saving you the cost of repurchasing theseparts. This upgrade kit can also be used in combination with EVO Frontand Rear coil over kits to maximize your vehicles on and off-roadperformance. Cutting and grinding of frame brackets required. Weldingrequired.

NOTE: compatible on 4dr. JL Unlimited only

Warranty. Limited Lifetime Warranty

Fitment:

• 2018 Jeep Wrangler
• 2019 Jeep Wrangler
• 2020 Jeep Wrangler
• 2021 Jeep Wrangler
• 2022 Jeep Wrangler
• 2023 Jeep Wrangler
• 2024 Jeep Wrangler
