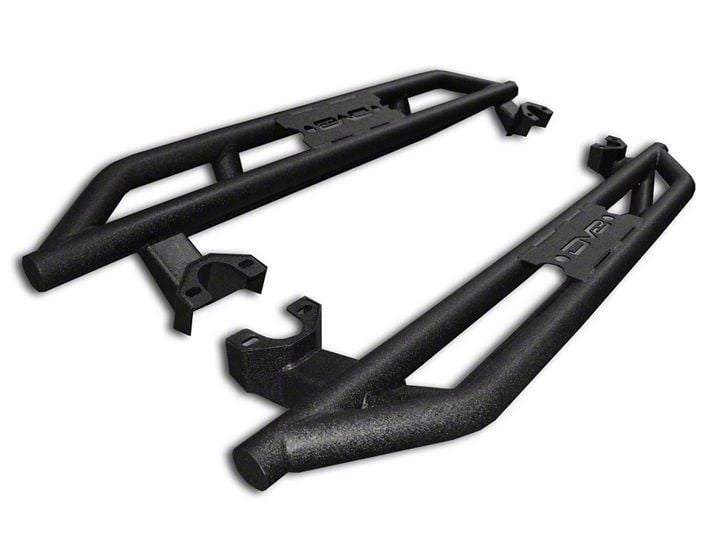

DV8 Off-Road Steel Rock Guard/Sliders - Black (07-17 Wrangler JK 2-Door)
Installation Time
2 hours
Tools Required
- Socket wrench with 16mm and 18mm sockets
- Torque wrench
Shop Parts in this Guide
Pre-Installation notes:
Rock Slider wrapped in white goes on drivers side. Rock slider wrapped in blue goes on passenger side. Verification
method - larger offset end goes towards front of vehicle, see photo.
If installing on Jeep with Factory Rock Sliders, Washers may have to be installed between the Rock Slider Ends and the Jeep for clearance.
Installation Instructions:
1. Remove two 16mm nuts on rear side of vehicle
2. Remove two 16mm nuts on front side of vehicle along with loosening the 18mm body bolt.
3. Hold Rock Slider to vehicle and start the furthest rear 16mm nut, only run it up about 3,4 threads.
4. With the rear held up by instruction 3. Place the front end around the loosened body bolt and onto the two 16mm studs
5. Tighten the front 18mm body bolt to 80 ft/lbs and the 4-16mm nuts to 35 ft/lbs
6. Repeat for other side
