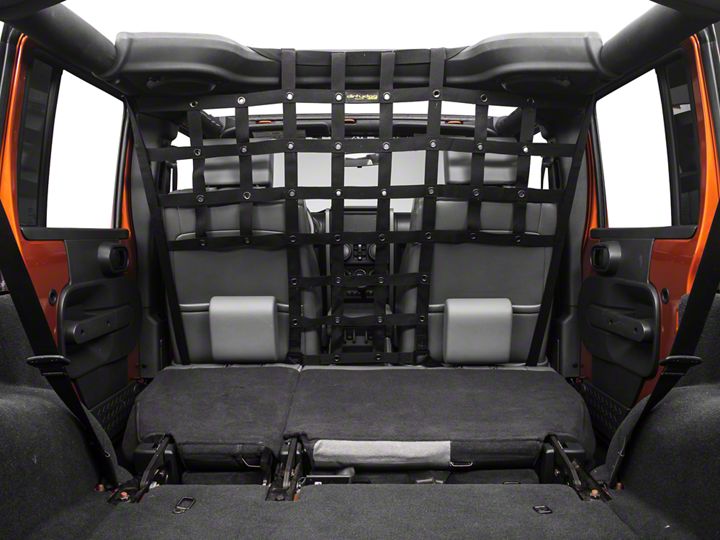

How to Install Dirty Dog 4x4 Pet Divider - Mounts Behind Front Seats - Black (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

30 minutes

Tools Required
  • Box Cutter/Knife
Extreme Terrain
Shop Parts in this Guide

Installation Instructions

1. Carefully open the package using a box cutter or knife (Figure A) and ensure the netting is included and undamaged.


2. In order to install the netting, it may be easiest to remove the two freedom panels if using a hardtop (Figure B).


3. Ensure the Dirty Dog logo is facing the front of the vehicle. Slide the top facing straps over the top roll bar on each side (Figure C).


4. Run the straps through the ladderlock sewn into the netting on both sides (Figure D).


5. Run the side-facing top straps over the top of the roll bar and connect them along the sides using the cam buckles (Figure E).


6. Pull the front seats forward to provide access to the front seat brackets (Figure F).


7. Run the lengthy bottom straps through the underneath side of each seat bracket and connect into the lower cam buckle on each end of the netting corners (Figure G).



Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 01/16/2018
