How to Install Daystar 2 in. Comfort Ride Front Coil Spacer Lift Kit (07-17 Wrangler JK) on your Jeep Wrangler
Installation Time
2 hours
Tools Required
- Metric tools.
- Floor jacks , jack stands and wheel chocks.
Shop Parts in this Guide
Bill of Materials
BOM for 1 1/2 kit

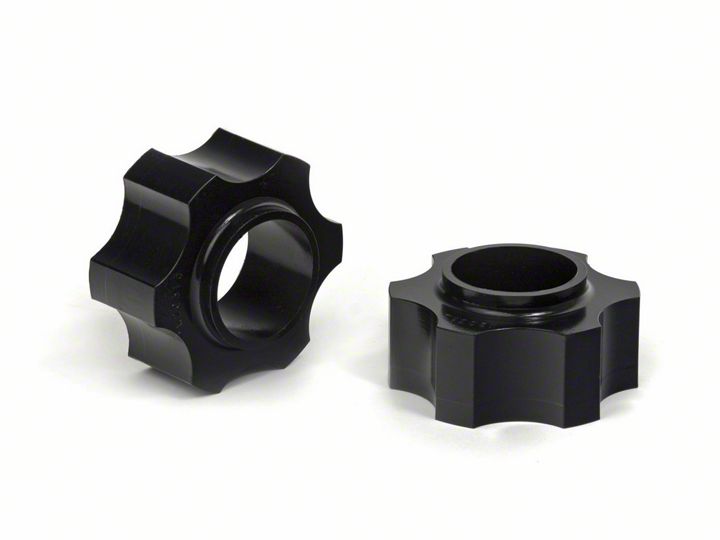

M2G313 x 2 Ft spacers
1. Check the BOM for all parts and lay out the tools.
2. Jack up the front of the vehicle and support the vehicle at the frame with jack stands. Put wheel chocks behind the rear tires.
3. With the jack under the front axle jack up the axle and remove the front wheels . Disconnect the shocks and sway bar end links and lower the axle and remove the springs.
4. Install the front spacers over the stock isolators and reinstall the front coils. Jack up the front axle and reinstall shocks and sway bar end links.
5. Put the front tires on and remove jack stands and put back on the ground.
6. You need to have your wheel alignment checked.
7. Check all bolts after 500 miles.
