How to Install Daystar 1.75 in. Comfort Ride Coil Spacer Lift Kit (07-17 Wrangler JK) on your Jeep Wrangler

BOM for 3/4 kit
MO3759 x 2 Ft spacers
MO3762 x 2 Rear spacers

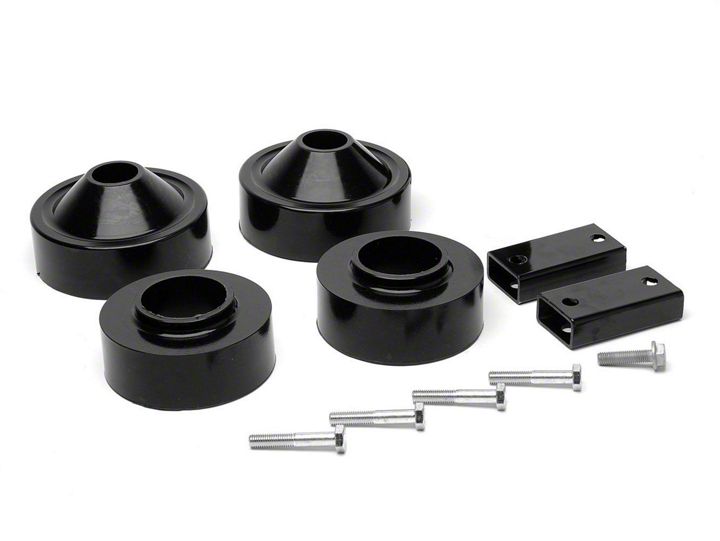

BOM for 1 3/4 kit
MO3758 x 2 Ft spacers
MO3761 x 2 Rear spacers
MO2533 x 2 Ft bump-stops
S11075 x 2 Drop brackets
S11090 x 4 Sleeves
S10737 x 4 Bolts
S11051 x 4 Washers
P11183 x 1 Loctite

1. Check the BOM for all parts and lay out the tools.

2. Jack up the front of the vehicle and support the vehicle at the frame with jack stands. Put wheel chocks behind the rear tires.

3. With the jack under the front axle jack up the axle and remove the front wheels . Disconnect the shocks and sway bar end links and lower the axle and remove the springs.

4. Install the front spacers over the stock isolators and reinstall the front coils. Jack the front axle and reinstall shocks and sway bar end links. On 1 3/4 lift install the extended front bump-stops.

5. Place the wheel chock at the front tires and jack up the rear suspension and support the vehicle at the frame and remove the rear tires.

6. With the jack under the axle jack it up so you can disconnect the rear shocks and the rear sway bar at the frame.

7. Lower the rear axle and remove the coil springs and install the spacer over the stock isolator and reinstall the coil spring.

8. Jack up the axle and reinstall the shocks and reinstall sway bar. For the 1 3/4 lift only install the drop down brackets for the sway bar mounts.

9. Put the rear tires on and remove jack stands and put back on the ground.

10. You need to have your wheel alignment checked.

11. Check all bolts after 500 miles.
