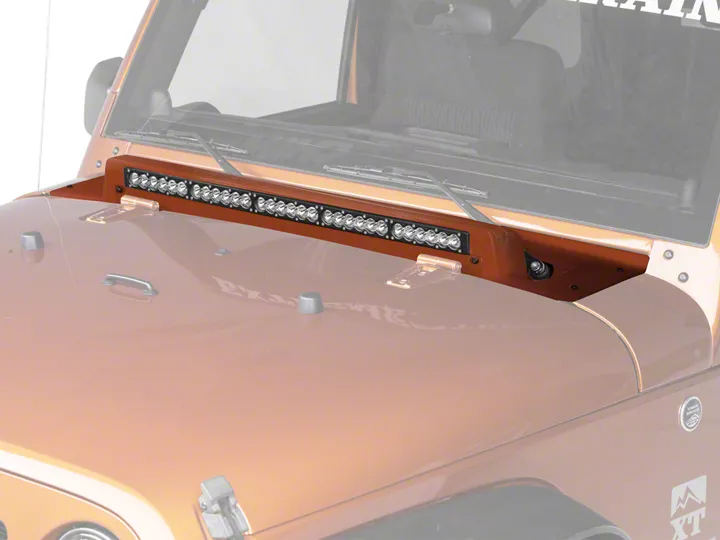

How to Install Cliffride Cleghorn Wiper Cowl w/ 31 in. LED Light Bar (07-17 Wrangler JK) on your Jeep Wrangler

Installation Time

2 hours

Tools Required
  • Small flathead and phillips screwdrivers
  • Needle nose plyers
  • T30 torx bit
  • 13mm wrench or socket
Extreme Terrain
Shop Parts in this Guide

Check fit all products before doing any body work or modifications if there is an issue contact us f

1. Remove the four T30 Torx bits holding the cowl in place. Fig. A

2. Remove the plastic caps covering the wiper hardware. Fig. B

3. Remove the 13mm nuts holding the wipers in place. Fig. C

4. Remove the wipers by pulling up and straight out. Fig. D

5. Lift the hood and remove the two tree rivets holding the cowl screen in place. Fig. E

6. Close the hood and remove the factory cowl. Fig. F

7. Using a flathead screw driver gently start to remove the tree rivets. Fig. G

8. Once the tree rivet is lifted enough remove it with a pair of needle nose plyers. Fig. H

9. Remove the four 13mm bolts from hood bracket. Fig. I

10. Reinstall the factory cowl vent screen and install the cowl bracket loosely so it can be moved side to side. Fig. J

11. Test fit the cowl and note the measurements of the cowl bracket. Fig. K

12. Tighten the four 13mm hood bracket bolts and install the supplied light bar to the bracket. Fig. L

13. Attach the cowl to the cowl bracket using the 2 phillips screws and plastic washers provided Fig. M

14. Tighten the cowl in place using the four T30 Torx screws. Fig. N

15. Attach the wipers in place using the factory hardware. Fig. 0

16. Install the factory wiper cowers. Fig. P

17. Install the factory tree rivets into the cowl screen. Fig Q
