Clayton Off Road 2.50-Inch Premium Suspension Lift Kit (21-24 Jeep Wrangler JL Rubicon 392)Find parts that fit my vehicle

Item J170957
Clayton Off Road 2.50-Inch Premium Suspension Lift Kit (21-24 Jeep Wrangler JL Rubicon 392)
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
9 Reviews
Our Price

$3,189.00

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Description, Reviews, Q&A

      Features & Specs

      Description

      Description. At last! The Jeep Wrangler 392 is finally here and for the most part, it's everything power-hungry Jeep fans have been craving for decades. Equipped with a 470-hp V-8 engine, the 392 certainly delivers on power, but the 2" factory lift and suspension system as a whole leaves a little to be desired. Soft springs, non-adjustable components, and not quite enough lift to fit those 37" or larger tires means an immediate suspension upgrade is imminent. Clayton Off Road is addressing all of these issues and more by making our entire lineup of JL Wrangler suspension systems available specifically for the 392. Keeping in mind the factory-equipped 2" lift, you can expect to gain about one additional inch of lift from our 2.5" system to fit up to 37" tires, and an additional 2 inches of lift from the 3.5" system to fit up to 39" tires. Not only are you gaining the extra clearance required for larger tires and wheel travel, but the on-road driving benefits provided by our suspension systems are worth the upgrade alone. The Jeep Wrangler 392 is a dream come true for many; unleash the full potential of your investment with a suspension system designed by the Jeep suspension experts at Clayton Off Road.

      Available in both 2.5" & 3.5" lift variants, all 8 of the adjustable control arms included in our Premium kits feature our dual durometer Giiro Joint bushings and forged Johnny Joint adjusters. These narrow series forged Johnny Joint adjusters feature a greaseable, and rebuildable 1 piece bushing capable of up to 40 degrees of misalignment. The Giiro joints are free pivoting, self-lubricating, self-centering, silent in operation and maintenance free bushings that make our kits ride like butter no matter what's underneath your vehicle. If that all sounds like it's too good to be true, that's because it should be - but the structured anatomy of our Giiro bushings matched with their superior material formulation allows two distant worlds to meet as one, providing you the desirable comfort of a daily driver and then easily transitioning to meet the extreme demands of rugged off-road terrain.

      Looking for the maintenance-free version? Click here to view our Overland Plus suspension system!

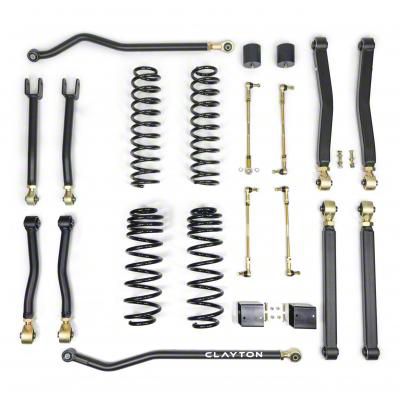

      Product at a glance:

      Bolt In Design

      8 Fully Adjustable Control Arms

      Premium Adjustable Front Track Bar

      Premium Adjustable Rear Track Bar

      Front Adjustable Sway Bar Links

      Rear Adjustable Sway Bar Links

      Lifetime Warranty*

      MADE IN THE USA!

      Some Specifics:

      CONTROL ARMS : Setting proper axle position, pinion angles and caster angles is critical to delivering a smooth on road ride, great off-road flex and overall performance. When everything is adjusted properly your vehicle just works better, not only day one, but also for years and years to come. Our control arms feature a unique bushing which utilizes a large outside knurled washer to allow greater surface area and therefore a superior clamping force. Proper clamping force is critical in eliminating death wobble issues and overall handling. Lower control arm housings also use a super thick 5/16s housing to eliminate the worry of denting or ripping the housing apart. A premium tube insert is pressed into the alternate end, plug welded and then fully robotic welded for maximum penetration, consistency and precision. Premium arms feature narrow series forged Johnny Joint adjusters which are greaseable, and rebuildable. They use a 1 piece bushing capable of up to 40 degrees of misalignment ready to tackle any terrain.

      TRACK BARS : Setting a proper vehicle track is also very important for handling and on-road performance. Our track bars are constructed using 1 3/8” x 5/16” DOM tubing. This extra thick tubing gives us a thicker wall diameter and is especially important around the adjustable johnny joint adjuster. This JL specific rod end gives us an easy bolt in design, is easily adjustable, and specifically designed with a longer body to provide greater access to the jam nut. The frame end uses a dual durometer free pivoting, self-lubricating, self-centering, silent in operation and maintenance free bushing GIIRO joint to help with road noise isolation.

      COIL SPRINGS : Linear rate, dual rate, triple rate, what do you really need? We actually use all 3 variants depending on the vehicle, height and capacity requirements. Linear coils have a single spring rate and are evenly spaced top to bottom which makes for a great spring for most applications. The main advantage being that the coils don’t touch each other, which can lead to wear and tear and coil failure. The dual rate coil has a tight set of coils usually at the top, and then a second set of coils with more traditional spacing below. Dual rate coils do not ride any better than single rate coils despite popular belief. The first rate is usually completely compressed and acts as a spacer, its purpose is to provide a longer free length coil so at maximum articulation the coil doesn’t unseat. In most applications, including the front of our JL 2.5” and 3.5” lift kits the coils do not unseat and there is a top post and bottom bump stop present so coils cannot fall out even at max articulation. But in the rear, there is no coil post or lower internal retainer, and therefore a dual rate coil is necessary. All of our coils are powder coated black using a new SealKor finish which is a zinc rich powder coat to help in the prevention of rust and corrosion.

      Fitment:

      Details

      Clayton Off Road COR-2909325

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Customer Reviews (9)

      Brand Image

      Reviews of Clayton Off Road Suspension products have an average rating of 5.0 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Wrangler

      • JL Rubicon 4 Door - 21, 22, 23, 24
