Find Hitches & Towing for your Bronco

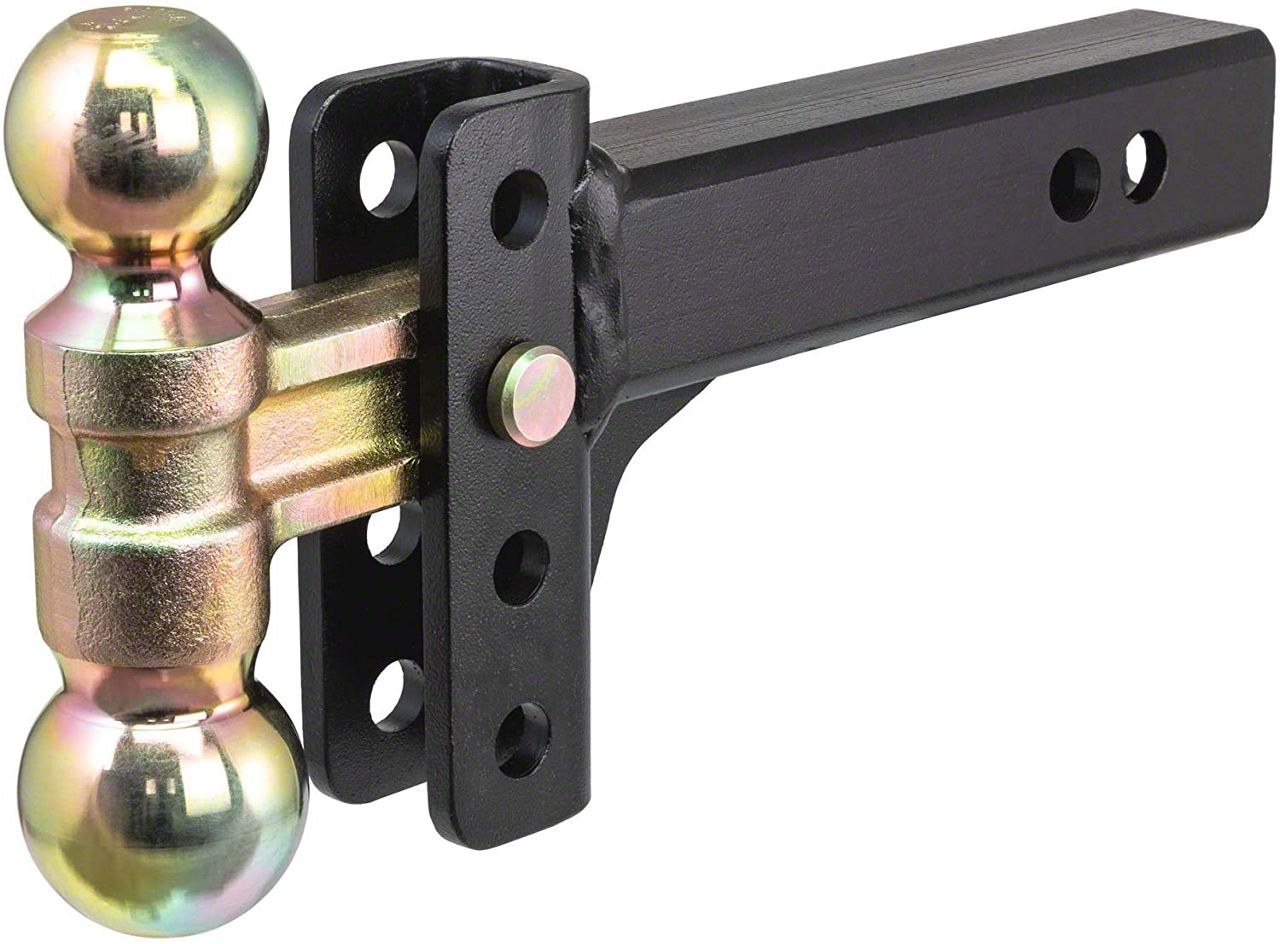

2-Inch Receiver Hitch Slim Adjustable Channel Mount; 3-3/4-Inch Drop (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item U3897-XT5Bronco Sales Tech
Verify parts fit & get product recommendations
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$206.95 each
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Adjustable Channel Mount
- Features Dual Ball Design
- Rated 8,000 Pounds for 2-Inch Ball
- Rated 10,000 Pounds for 2-5/16-Inch Ball
- Ball Can be Flipped for Max Rise of 3-1/2 Inches and Drop of 3-3/4 Inches
- Two Hitch Pin Holes for Shank Lengths of 10 or 11 Inches
- Carbon Steel Construction
- Powder-Coat Finish
- Limited Lifetime Warranty
- Easy Installation
- Universal Fitment, Some Adaptation May Be Needed
Description
Dual Ball Style Channel Mount. Be prepared for the job and be ready to adapt with this 2-Inch Receiver Hitch Slim Adjustable Channel Mount; 3-3/4-Inch Drop. It features a standard receiver hitch shank, a multi-level channel and a standardized trailer ball attachment, allowing you to easily tow different types of trailer without holding on to multiple ball mounts on hand.
Superior Utility. This Dual-Ball Head Channel Mount offers flexible towing options with its standard 2-inch and 2-5/16-inch diameter trailer balls to fit two different size trailer couplers. It also comes with a 2-inch shank to fit any 2 x 2-inch receiver hitch. The Shank has two hitch pin holes to adjust the length of the ball mount from 10 inches to 11 inches giving you extra clearance should you need it. The Dual-Ball Channel Mount offers a maximum drop of 3-3/4 inches, and it can also be flipped for a maximum rise of 3-1/2 inches.
Durable Construction. Built from carbon steel, this Channel Mount is rated for a maximum gross trailer weight capacity of 8,000 pounds for the 2-inch ball, while 10,000 pounds for the 2-5/16-inch ball. Topping it off is a powder-coat finish to help guard against corrosion for a longer service-life.
Warranty. There is a limited lifetime warranty on this product with a 1-year warranty on the finish and parts.
Installation. This product is easy to install and should take about 1 hour.
Application. The 2-Inch Receiver Hitch Slim Adjustable Channel Mount; 3-3/4-Inch Drop is a product with universal fitment with some adaptation needed.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Channel Mount
4.8
Reviews of similar Exterior Products (135)
Reviews of similar Exterior products have an average rating of 4.8 out of 5
Mar 28, 2023
Review shared from Class III Trailer Hitch (21-23 Bronco w/o Factory Hitch)
2022 Big Bend - RichMc
Easy Install on a Big Bend
Very easy to install on my Big Bend. Didn’t need to unbolt or pry anything out of the way.
Mar 1, 2025
Review shared from Class III Trailer Hitch (20-25 Jeep Gladiator JT)
2024 Sport S - Tanker
Perfect fit and finish
Good looking and easy to install. Good value. Instructions are OK and with the YouTubes available made for a painless install.
Feb 21, 2025
Review shared from Class III Trailer Hitch (20-25 Jeep Gladiator JT)
2025 Sport -
15 degrees!
I installed my hitch when it was 15 deg. outside. A hint- take the 1/2 bolts and spacer and put them together with some adhesive and set upside down overnight, it makes it easier to slide them through the crossmember with the fishing wire.
Dec 20, 2024
Review shared from 1-1/4 to 2-Inch Receiver Hitch Tray-Style Bike Rack; Carries 2 Bikes (Universal; Some Adaptation May Be Required)
2010 Rubicon - PilotJohan
Easy to use.
This is the easiest to use for a secure fit I have found so far. I can use it for one bike by just leaving the parts for the second bike off or adding those parts in under a minute for the second bike. Putting the bike in the clamps takes only seconds, including locking the hold hook in place. I've used this off-road many times and it holds the bike very securely. If you have it on a jeep with a spare tire, I strongly recommend a heavy-duty hitch extender (which are not very expensive). Note: the rear door will not open with this rack attached.
Sep 30, 2024
Review shared from Class III Trailer Hitch (20-25 Jeep Gladiator JT)
2023 Overland - Bryanbeebe
Great hitch
It was such a easy install maybe 15 minutes max and the product works great
Sep 29, 2024
Review shared from Front Mount Hitch (18-25 Jeep Wrangler JL)
2023 Wrangler - Jeepducks
Front receiver for a jeep wrangler
It was very easy to install and well built. I would recommend this to anyone that is thinking about a plow for there jeep
Sep 2, 2024
Review shared from 2-Inch Receiver Hitch Adapter; 2-Inch Drop (Universal; Some Adaptation May Be Required)
2007 Wrangler - DisappointedDan
Tow hitch
Very well constructed. Same weakness as my off road bumper in that no safety chain accommodations. By adding chain loops it is a complete package.
Aug 5, 2024
Review shared from Class III Trailer Hitch (07-18 Jeep Wrangler JK)
2018 - Jgraves
Easy install
Everything went right together as planned. No fuss or anything
Jul 14, 2024
Review shared from 1-1/4 to 2-Inch Receiver Hitch Basket-Style Cargo Carrier; 48-Inch x 20-Inch (Universal; Some Adaptation May Be Required)
2023 Wrangler - Carlop808
Nice but you need extender
Welds don’t line up quite flush was a pain. Wear glove and use a few wrenches to hold bolts from spinning. Nice clean design.
May 30, 2024
Review shared from Class III Trailer Hitch (20-25 Jeep Gladiator JT)
2021 - CesarBlueJeep
Work Done
exact fit easy to install look good and already test Work done
