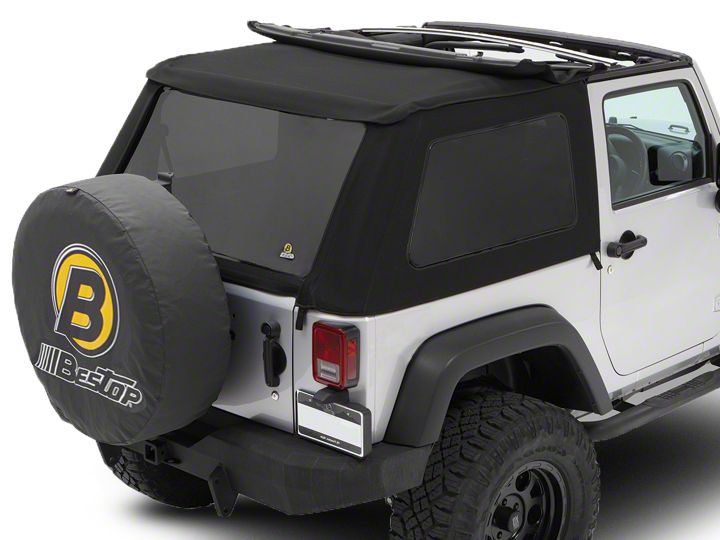

How to Install Bestop Trektop NX - Black Twill (07-17 Wrangler JK 2-Door) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • Phillips Screwdriver
  • Utility Knife
  • Ratchet
  • 13mm Socket
  • Safety Glasses
Extreme Terrain
Shop Parts in this Guide

Installation Tips

Before you begin installing your new Trektop NX, please read all the instructions thoroughly.

For a smooth fit: For easier installation, the top should be installed at a temperature above 72º F. Below this temperature, the fabric may contract an inch or more, making it difficult to fit the vehicle.

It is normal for the fabric to contract and wrinkle when stored in the ship­ping carton. Within a few days after installation, the fabric will relax and the wrinkles will disappear.

Parts List- Required parts for each installation section




Section 1 Install Cable Brackets


Section 1 Install Cable Brackets (cont.)


Section 2 Install Rear Bow Brackets


Section 2 Install Rear Bow Brackets (cont.)


Section 3 Install Rear Door Surrounds


Section 4 Install Front Door Surrounds


Section 5 Install Sunrider Bracket


Section 6 Install Front Top Arch


Section 7 Install Rear Top Arch


Section 8 Install Tailgate Bar Mounts


Section 9 Attach Side Bows to Header/Fabric Assembly


Section 9 Attach Side Bows to Header/Fabric Assembly (cont.)


Section 9 Attach Side Bows to Header/Fabric Assembly (cont.)


Section 10 Install Foam Tape Strips and Foam Seals


Section 11 Mount Header Assembly to Sunrider Bracket


Section 12 Install Middle Bow and Bow Clip


Section 13 Position and Secure Middle Bow


Section 14 Open Sunrider and Install Rear Bow


Section 15 Secure Cable Spring


Section 16 Close Sunrider and Secure Header Latch


Section 17 Install Rear Window


Section 18 Install Side Window


Section 18 Install Side Window (cont.)


Section 19 Install and Secure Tailgate Bar


Section 20 Secure Rear Window


Section 21 Secure Header Latches


Care and Maintenance of your Bestop Product

Your Bestop product is made of the finest materials available. To keep it looking new and for the maximum possible life, it will need periodic cleaning and maintenance.

Fabric: The fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all traces of soap. Bestop recommends using Bestop Cleaner (part no. 11201-00) and Bestop Twill Protectant (part no. 11207-00) which are specially formulated to provide a total cleaning and protection system

Windows: Keep windows clean to avoid scratching. DO NOT use a brush on the windows! Wash with a water-soaked cloth or sponge and a mild dishwashing detergent. Bestop recommends Bestop Vinyl Window Cleaner (part no. 11203-00), which safely cleans and protects vinyl windows and helps prevent UV damage. NEVER WIPE THE WINDOWS WHEN THEY ARE DRY. Be careful when cleaning snow or frost from the vinyl windows since they are easily scratched and may crack at low temperatures. DO NOT roll the sides or rear window in cold weather. The windows become stiff and will crack. Cracks caused by misuse in cold temperatures are not covered under warranty.

Zippers: Keeping zippers cleaned and lubricated with Bestop’s Zipper Cleaner (part no. 11206-00) will help prevent damage and keep the zippers in smooth working condition. If a zipper opens behind the slider, the slider may have been spread apart. This problem can usually be repaired by using an ordinary pair of pliers to bring the sides back into parallel. Return slider to the end of the zipper in the normal Open position. Squeeze lightly at first and test the zipper. If the zipper continues to remain open squeeze more firmly with the pliers and try the zipper again. Repeat this procedure until the zipper operates correctly.

Water: Seeping through at the seams may be stopped by applying 3-M Scotchgard® on the inside of the seams. Rips in the fabric may be repaired with Bondex® iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex® instructions.

Snaps: Keep snaps cleaned and lubricated with silicone to help prevent snaps from sticking to the studs. If a snap does become stuck to a stud, use a screwdriver and GENTLY pry apart to prevent permanent damage to the snap or the top fabric.
