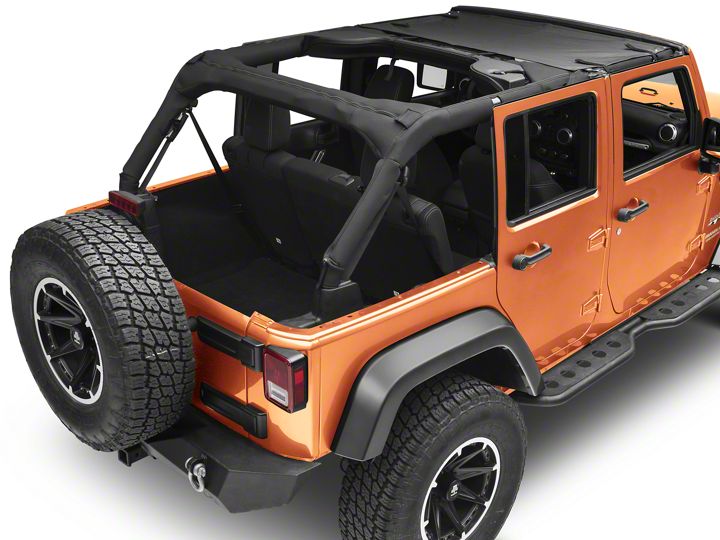

How to Install Bestop Targa Style Sun Bikini Top - Black Diamond (07-18 Jeep Wrangler JK) on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Box Cutter/Knife
- Torx 25 Bit
- 10mm Socket
- Socket Wrench
Shop Parts in this Guide
1. Remove the freedom panels from the vehicle (Figure A).
Figure A
2. Thread the dowel rod through the front of the top (Figure B).
Figure B
3. Thread the second dowel rod into the front of the top (Figure C).
Figure C
4. Connect the dowel rods (Figure D).
Figure D
5. Remove the torx bits of the front footman loops using a Torx 25 bit and secure the front clasps (Figure E).
Figure E
6. Remove the 10mm bolt from each side of the roll bar and connect the clasps (Figure F).
Figure F
7. Run the side straps around the side roll bars (Figure G).
Figure G
8. Run the rear straps over and around the center of the roll bar (Figure H).
Figure H
9. Tighten all straps down securely.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/01/2018
