BDS 2-Inch Suspension Lift Kit with FOX 2.5 Coil-Overs and 2.5 Performance Elite Shocks (16-23 4WD Tacoma, Excluding TRD Pro)Find parts that fit my vehicle

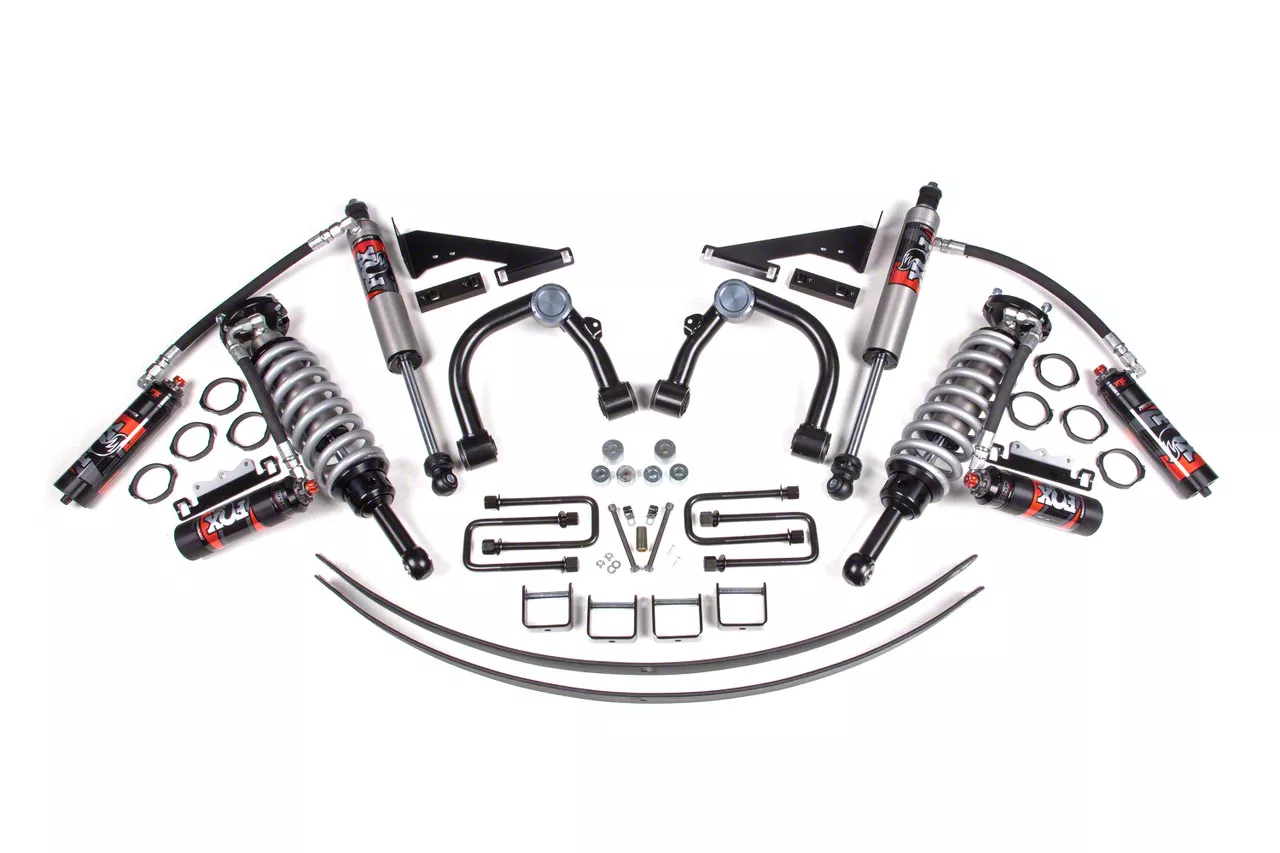

BDS836FPE will up the ante in your 2016-2020 Toyota Tacoma truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.

FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)
Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Features-

Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
Multi-leaf progressive design for smooth ride
Anti-friction pads provide a smooth and quiet ride
Details-

Front Lift Height: 2 IN
Front Lift Method: Coil Over
Installation Difficulty: moderate
Installation Time: 3-4 Hrs
Installation Tools: 35mm Socket Axle Nut Socket-cutOffTool
Rear Lift Height: 2 IN
Rear Lift Method: Add A Leaf
Rear Shock Option: FOX 2 5 Performance Elite
Shocks Included: Yes

Fitment:

• 2016 Toyota Tacoma
• 2017 Toyota Tacoma
• 2018 Toyota Tacoma
• 2019 Toyota Tacoma
• 2020 Toyota Tacoma
• 2021 Toyota Tacoma
• 2022 Toyota Tacoma
• 2023 Toyota Tacoma
