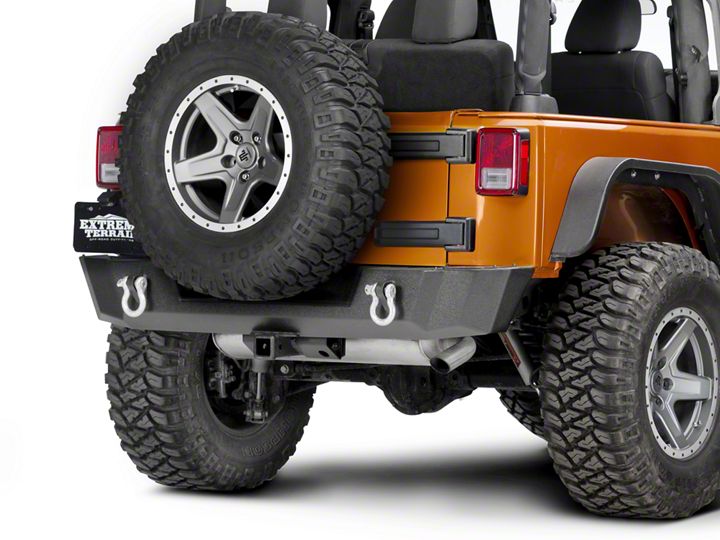

How to install Barricade Extreme HD Rear Bumper on your Wrangler

Installation Time

1 hours

Tools Required
  • 13mm-19mm Sockets
  • 13mm-19mm Wrenches
  • Allen Key Set (Metric)
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Contents


(1) - Bumper
(2) - Bumper Plates
(1) - Bolt Kit


STEP 1 // Remove the (4) 15mm bolts securing the rear bumper.


STEP 2 // Next, slide the L-Shaped mounting brackets into the frame rails with the nut backing up to the predrilled hole in the frame.


STEP 3 // Slide new rear bumper into place, securing the bump but leaving the bolts loose.


STEP 4 // Secure the backing plate, then tighten all bumper bolts that hold the bumper to the frame.


STEP 5 // Attach the supplied driver side bumper plate using the supplied allen bolts.


STEP 6 // Attach the supplied passenger side bumper plate using the supplied allen bolts.
