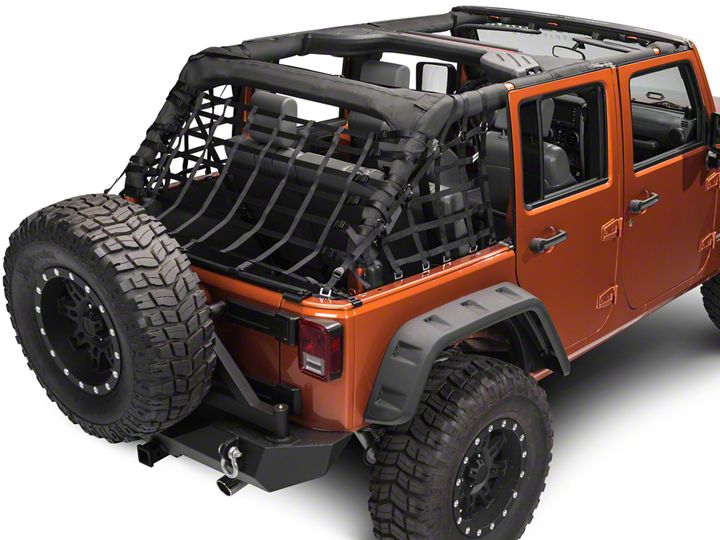

How to Install TruShield Wrap Around Net - Three Piece on your Wrangler

Side Panels
1. Referring to the attached photo of the side panel, connect the first vertical strap
just behind the rear edge of the door, as close to the door as possible. Pull snug,
but not tight.
2. Connect the next vertical strap and pull snug. Connect the same straps on the
opposite side.
3. Connect this strap with the same strap from the other side where they meet over
the middle of the roll bar.
Important: (*) Position these straps as shown in the photo. It goes just in front of
the bolt under the padding of the roll bar. This prevents the strap from blowing loose
while driving.
4. & 5. Connect these straps as shown and pull snug.
6. The hook of this strap connects to the lip of the metal jeep body.
Adjust as necessary to keep the vertical and horizontal straps perpendicular to each
other. Pull straps tight and feed the loose ends back through the plastic connector to
conceal them.
Rear Panel
1. Connect this strap to each side just above the soft top strut braces as shown in the
photograph.
2. Attach the upper most strap as shown.
3 thru 6. Working downward, attach the remaining straps, same as above.
7. Using the hooks, attach this strap as close to the tailgate as possible.
8. Connect the hooks to the tailgate bar. Adjust and tighten as needed.
Important: (**) This rear panel utilizes the tailgate bar for attachment of the hooks
on the lower most horizontal strap. If your jeep came without a tailgate bar, it can be
purchased from a Jeep accessory dealer or you may simply decide not to use those
lower hooks.
Note: Steel roll cages expand and contract with temperature changes. Occasional
tightening will be necessary at first and best done in the morning.
Tip: To get the straps extra tight, use pliers to grip the strap ends.
