Find 8000-10500 Pound Winches for your Wrangler
Barricade 9,500 lb. Winch with Black Synthetic Rope (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item J210823
$0.00
267 Reviews
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs

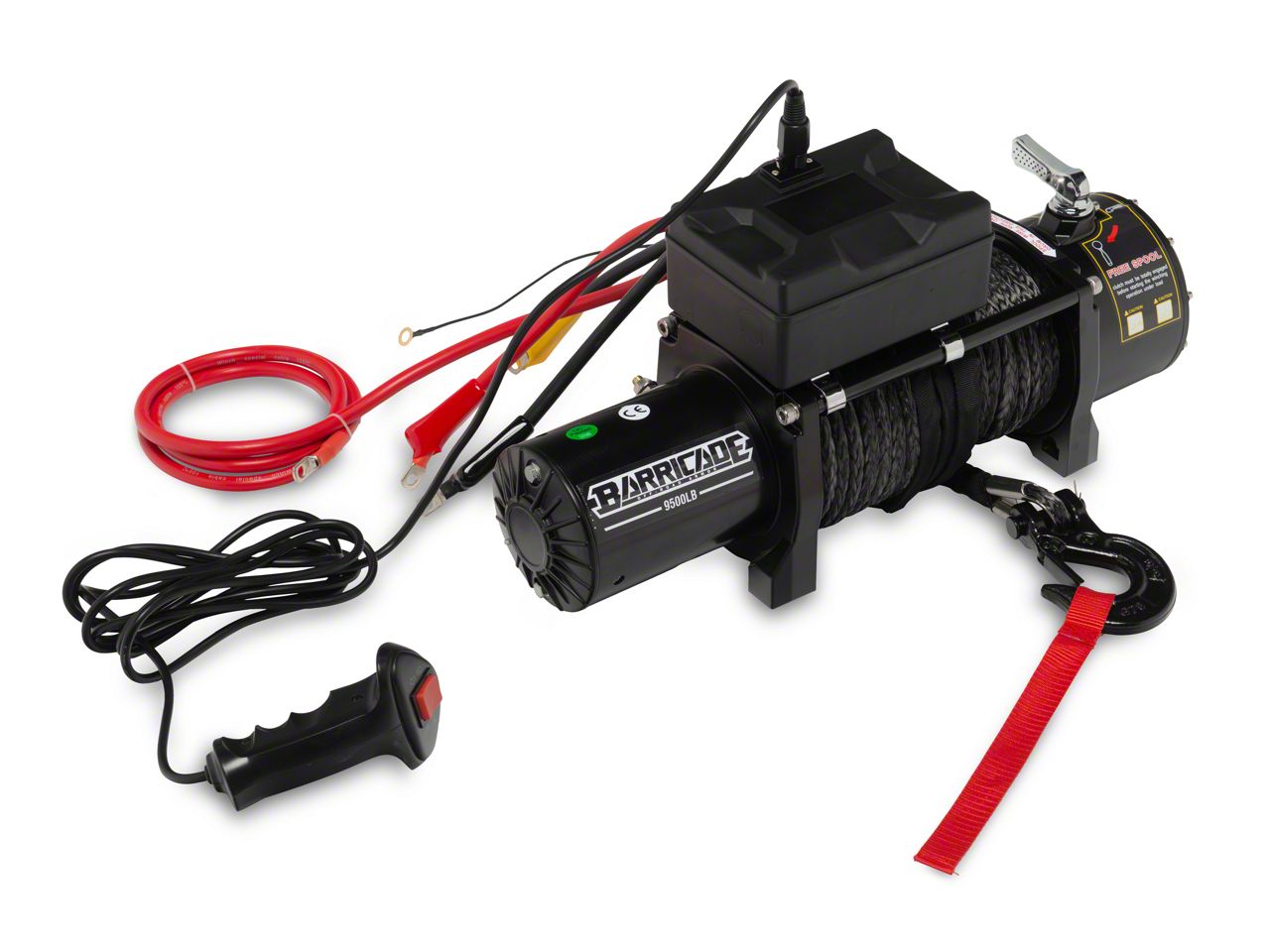

- 9,500 lb. Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- Three Stage Planetary Gear with 218:1 Gear Ratio
- 91 Foot Black Synthetic Rope Included
- Wired Remote Switch with 12 Foot Lead
- Durable Black Powder Coat Finish
- Hawse Fairlead and Power Lead are Included
- Overall Dimensions: 21.3 × 6.1 × 7.7 Inches
- Mounting Bolt Pattern: 254mm X 114.3mm
- Weight: 79 Pounds
- Universal Application for all Vehicles
| Brand | Barricade |
| Winch Capacity | 9500 lbs |
| Winch Rope Type | Synthetic Rope |
| Winch Remote Type | Wired |
Description
Be Prepared For a Recovery Situation. It doesn't matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your rig with a reliable recovery system like Barricade Off-Road's 9,500 lb Winch that includes a Synthetic Rope. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 9,500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 218:1 gear ratio, this Barricade Winch provides 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9,500 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot black synthetic rope while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.3 × 6.1 × 7.7 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9,500lb Winch with Black Synthetic Rope features a universal design and will fit most makes and models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 9,500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 218:1 gear ratio, this Barricade Winch provides 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9,500 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot black synthetic rope while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.3 × 6.1 × 7.7 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9,500lb Winch with Black Synthetic Rope features a universal design and will fit most makes and models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 25.6 ft./min
- 2000 lbs. - 16 ft./min
- 4000 lbs. - 11.9 ft./min
- 6000 lbs. - 9.79 ft./min
- 8000 lbs. - 8.2 ft./min.
- 9500 lbs. - 7.2 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, a winch cover is required when not in use.
Barricade J210823
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 9,500lb winch
- 91 foot Black Synthetic Rope
- Hawse Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Rope Hook
- Red Line Flag
- Hardware
