How to Install Barricade Extreme HD Adventure Doors - Rear on your Wrangler

Contents:
(1) Left Rear Door
(1) Right Rear Door
(2) Latches
(4) Iv18x1.25 Bolts
(8) 108x1.25 Nuts
(12) M8 Flat Washers
(4) M8 Lock Washers
(2) Door Straps

Begin by removing the T-50 Torx nuts on the  bottom of the factory door hinges. These will not  be reused.

Slide the front seat forward to access the interior  trim panel. Using a panel removal tool, pry the  panel off. **Note: The panel has indents on the  sides, pry from those indents.

Roll down the windows so that the door is easier to  handle while removing it from the vehicle. Unlock  the red locking mechanism and then unplug the  connector. Slide the hinge strap off the chassis  mount. Lift the door up to remove it from the  vehicle.

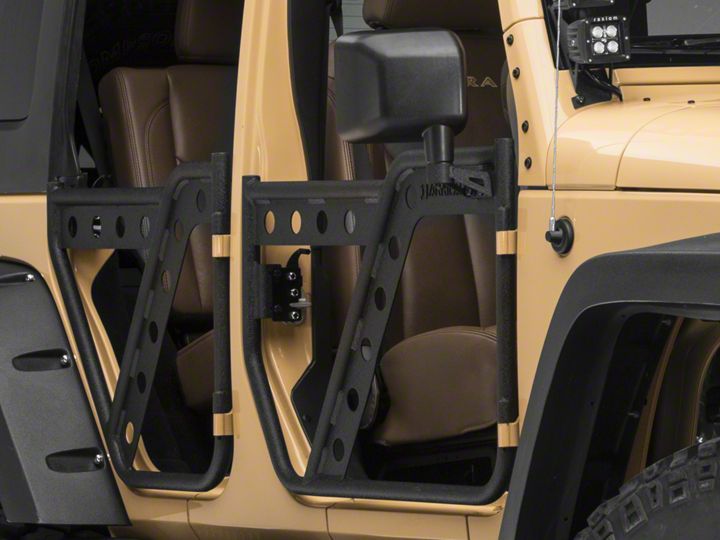

Install the Adventure Door, you may need to use a  rubber mallet to seat the door all the way onto the  hinge. Use the supplied M8 nut and washer to  secure the door to the hinge.

Loosely install the door latch using the M8x1.25  bolts, flat washers, and lock washers.

Align the door latch with the striker as seen above. **Note: Spending extra time aligning the latch to the striker will result in a smooth feel when opening and closing the Adventure Door.

Remove the Phillips screws securing the Adventure door strap mount, install the door strap to the Adventure Door and then to the chassis mount. **Note: Using the correct size philips head screw driver will prevent stripping of the screw head.
