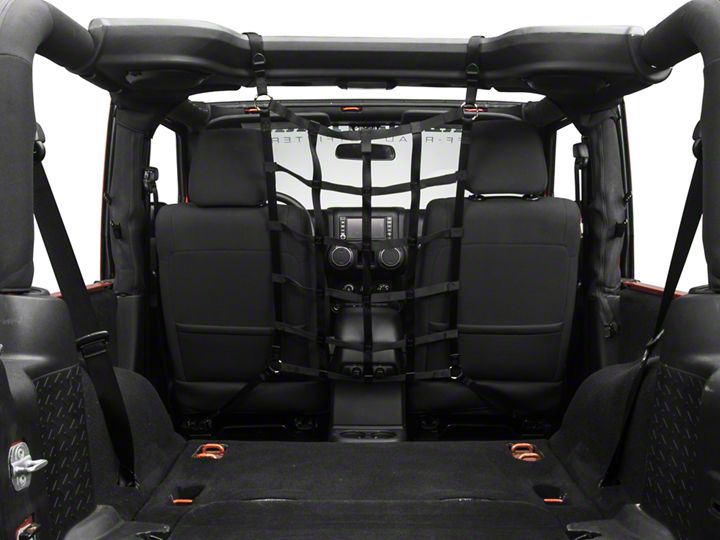

How to Install TruShield Pet Barrier Net (07-18 Wrangler JK 2 Door) on your Jeep Wrangler

1. Carefully open the package using a box cutter or knife (Figure A) and ensure the product is included and undamaged.

2. Lay the netting out flat and find the Barricade label (Figure B).

3. Pull the front seats all the way forward (Figure C).

4. If installing on a hardtop, it may be easier to install if the two front hardtop panels are removed (Figure D).

5. With the Barricade logo facing the rear of the vehicle and in the top passenger-side corner, run the top right strap over the sound bar (front to rear) (Figure E).

6. Retrieve the strap on the other side of the sound bar and pull down (Figure F).

7. Run the retrieved strap through the buckle at the bottom of the same strap (Figure G).

8. Follow steps 5-7 on the left side, as well.

9. On the bottom of the netting, find the strap with a metal hook and secure it around the outer seat bracket on both the driver and passenger seats (Figure H).

10. Tighten all straps (Figure I).

Optional: Use pliers for additional leverage in tightening the netting straps.

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 12/20/2017.
