Barricade 9,500 lb. Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Item FB6794
Product Image
Barricade 9,500 lb. Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)
Verify parts fit and get product recommendations.
Bronco Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
267 Reviews
Our Price

$374.99 kit

Out of Stock

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Wireless Remote Control Winch
      • 9,500 Pound Single-Line Pulling Capacity
      • 5.5 Hp, 12 Volt, Series Wound Motor
      • 3 Stage Planetary Gear with a 195.4:1 Ratio
      • Full Load Line Speed is 6.4 Feet Per Minute
      • 94 Foot Synthetic Rope
      • Weighs 58 lbs
      • Black Powder Coat Finish
      • Optional Wired Remote Included
      • Includes Hawse Fairlead
      • Winch Cover Not Included

      Description

      Remote Control. Don't hit the trail unprepared, make sure your Bronco is equipped with Barricade Off-Road's Wireless 9500lb Winch with Synthetic Rope. This winch gives you even more safety and security when recovering from the roughest of spots. Stand back and take control with a wireless remote keeping you and other's out of harms way.

      Winch Specs. The Barricade Off-Road 9500lb Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio to provide 9500 pounds of pulling power to get you out of the messiest situations. Matched with the two-way automatic, in-the-drum braking system you know you can always rely on this winch to hold your rig.

      Accessories. This winch comes with a 94 foot bright orange synthetic rope, a hook, wireless remote control, a remote control on a 12 foot lead and a 4-way aluminum hawse fairlead.

      Application. This winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs with a standard mounting footprint of 10 by 4.5 inches on all 2021-2024 Ford Bronco models.

      Please note: To prevent damage to the synthetic rope from sun and weather this winch requires the use of a cover when not in use. Winch cover not included - sold separately.

      Line Pull Speeds

      • 0 lbs. - 35.4 ft./min
      • 2000 lbs. - 14.8 ft./min
      • 4000 lbs. - 11.2 ft./min
      • 6000 lbs. - 9.5 ft./min
      • 8000 lbs. - 7.87 ft./min
      • 9500 lbs. - 6.43 ft./min

      • Replacement Hardware – SKU U2406H

      Barricade Off-Road

      Barricade J103902

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

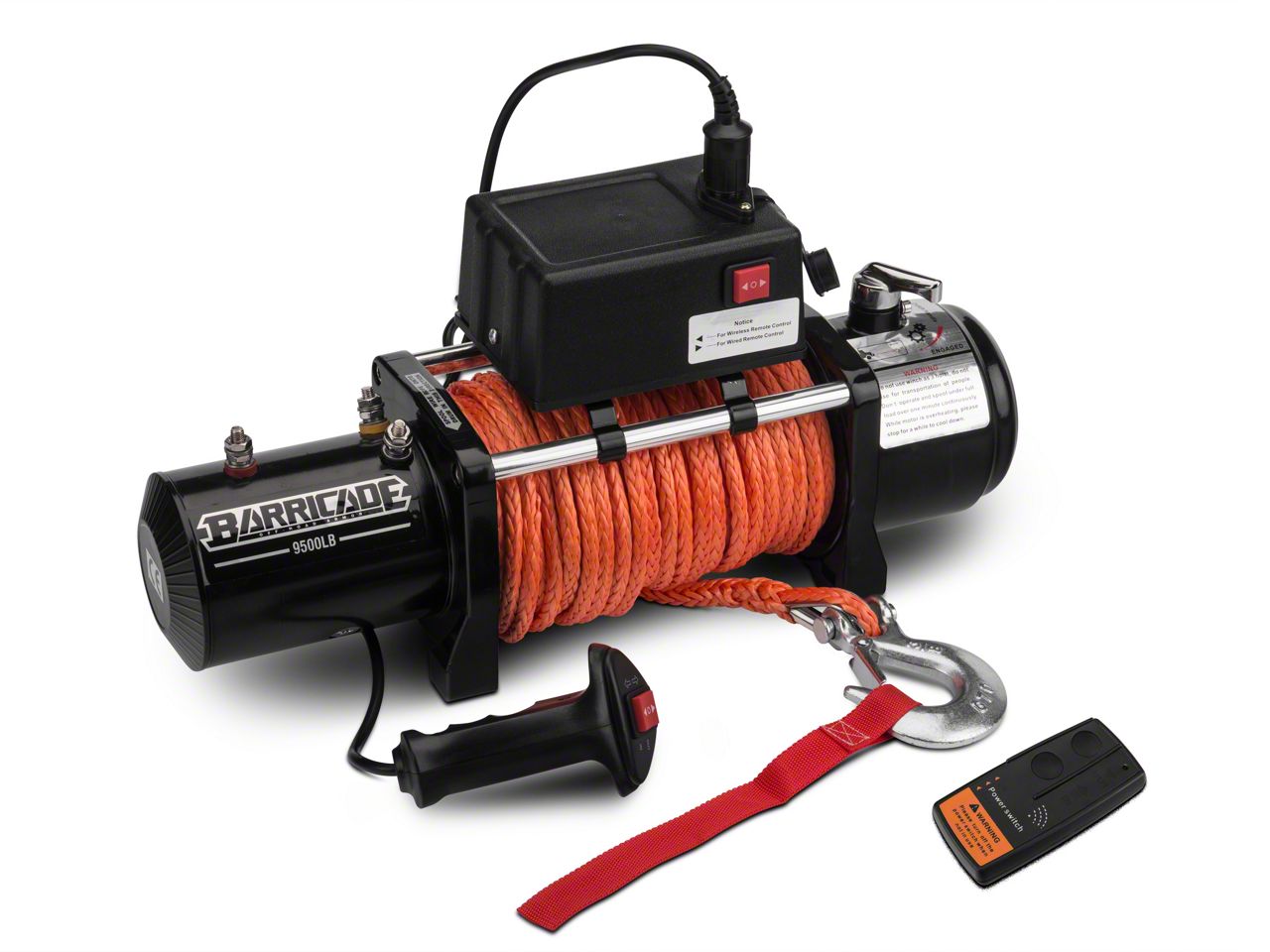

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • 9500lb winch and rope
      • Hawse fairlead
      • Wireless remote
      • Remote control lead
      • Solenoid
      • Wiring harness
      • Cable hook
      • Red line flag
      • Hardware
