Find Winches Top Level for your Bronco

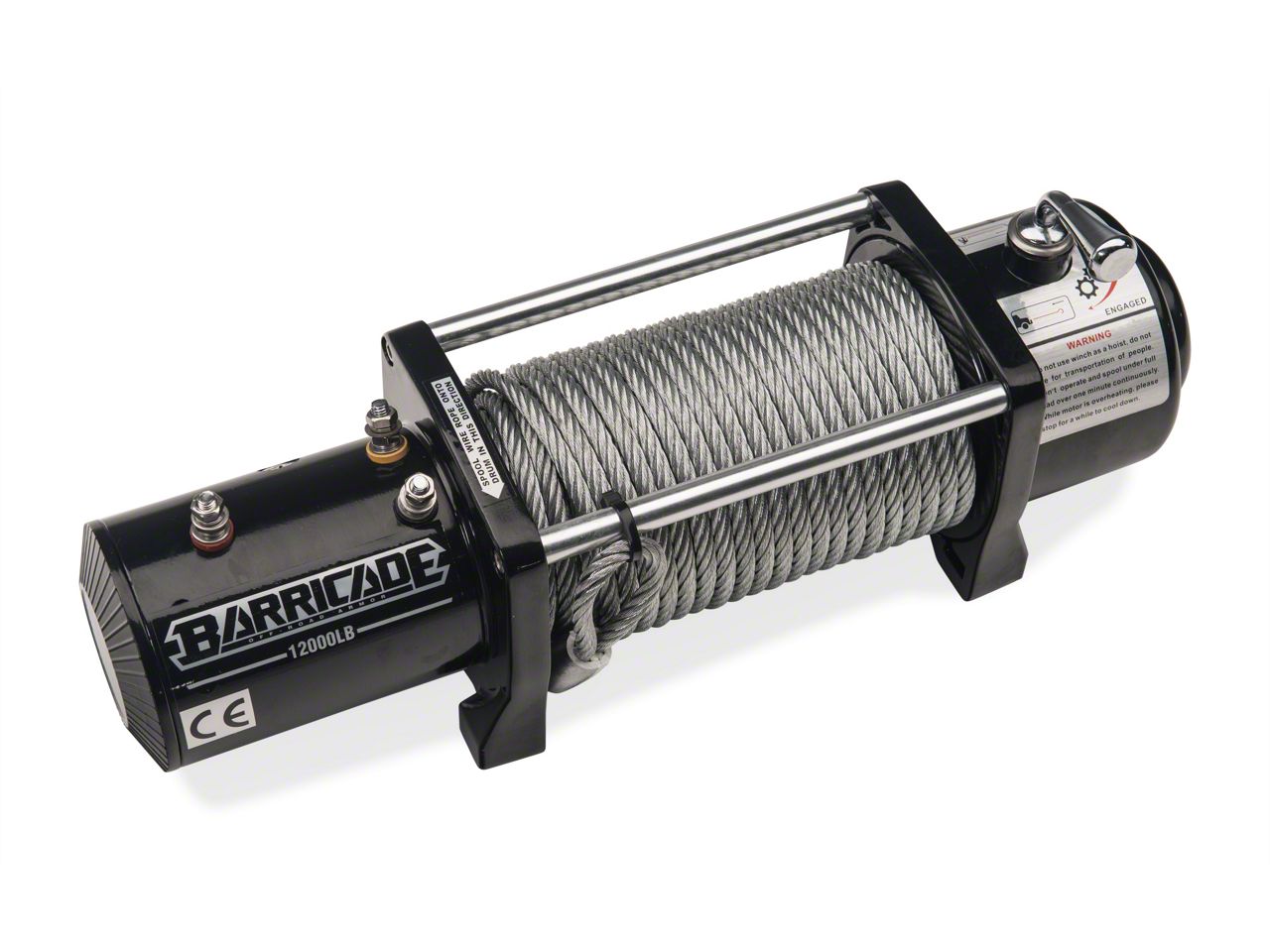

Barricade 12,000 lb. Winch (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item FB6787
$0.00
66 Reviews
Our Price
$334.99 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 12,000 Lb., (5443 Kgs) Single-Line Pulling Capacity
- 6.6 Hp, 12 Volt, Series Wound Motor
- 3 Stage Planetary Gear with a 187.2:1 Ratio
- 94 Feet of 23/64 Inch Steel Winch Cable with Replaceable Hook
- Line Speed Under Full Load is 6.4 Feet Per Minute
- Weighs 58 lbs and is 21.1 Inches by 6.3 Inches by 8.6 Inches with a Mounting Footprint of 10 Inches by 4.5 Inches
- Black Powder Coat Finish
- Heavy Duty Rubberized Remote Control with a 12 Foot Lead
- Roller Fairlead
- Universal Application
| Brand | Barricade |
| Winch Capacity | 12000 lbs |
| Winch Rope Type | Steel Cable |
| Winch Remote Type | Wired |
Description
Pulling Capacity. The Barricade Off-Road 12,000 lb winch delivers everything you need for a safe off-roading experience. If you consider yourself an off-roader, you know the importance of having a winch even on the easiest of trails. When you are searching for a winch, you want to make sure you get one worth your money, that will work every time, without ever having to worry if it will function or not. The Barricade Off-Road 12,000 pound winch is that winch. Barricade Off-Road builds this winch with budget and quality in mind. The 6.6 hp motor with a gearbox boasting a 187.2:1 gear ratio can pull you and your friends out of the messiest of situations, and is rated for a max pull weight of 12,000 lbs.
Winch & Line Specs. With 94 feet of 23/64 inch steel cable, you can be sure you always have enough winch rope to reach a recovery point no matter what the situation. Made to withstand the elements, the winch rope will last you for many years and many recoveries. The 12 foot lead on the rubberized remote ensures you can always reach your winch control box, even from inside of your Bronco.
Accessories. This winch comes with a 23/64 inch steel winch cable, hook, remote control on a 12 foot lead, and roller fairlead.
Application. This winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs on all 2021-2024 Bronco.
Line Pull Speeds
- 0 lbs. - 33.3 ft./min
- 4000 lbs. - 16.8 ft./min
- 6000 lbs. - 12.8 ft./min
- 8000 lbs. - 10.1 ft./min
- 10000 lbs. - 8.8 ft./min
- 12000 lbs. - 7.6 ft./min
- Replacement Hardware – SKU U2396H
Barricade J100205
