Find Winches for your Tacoma

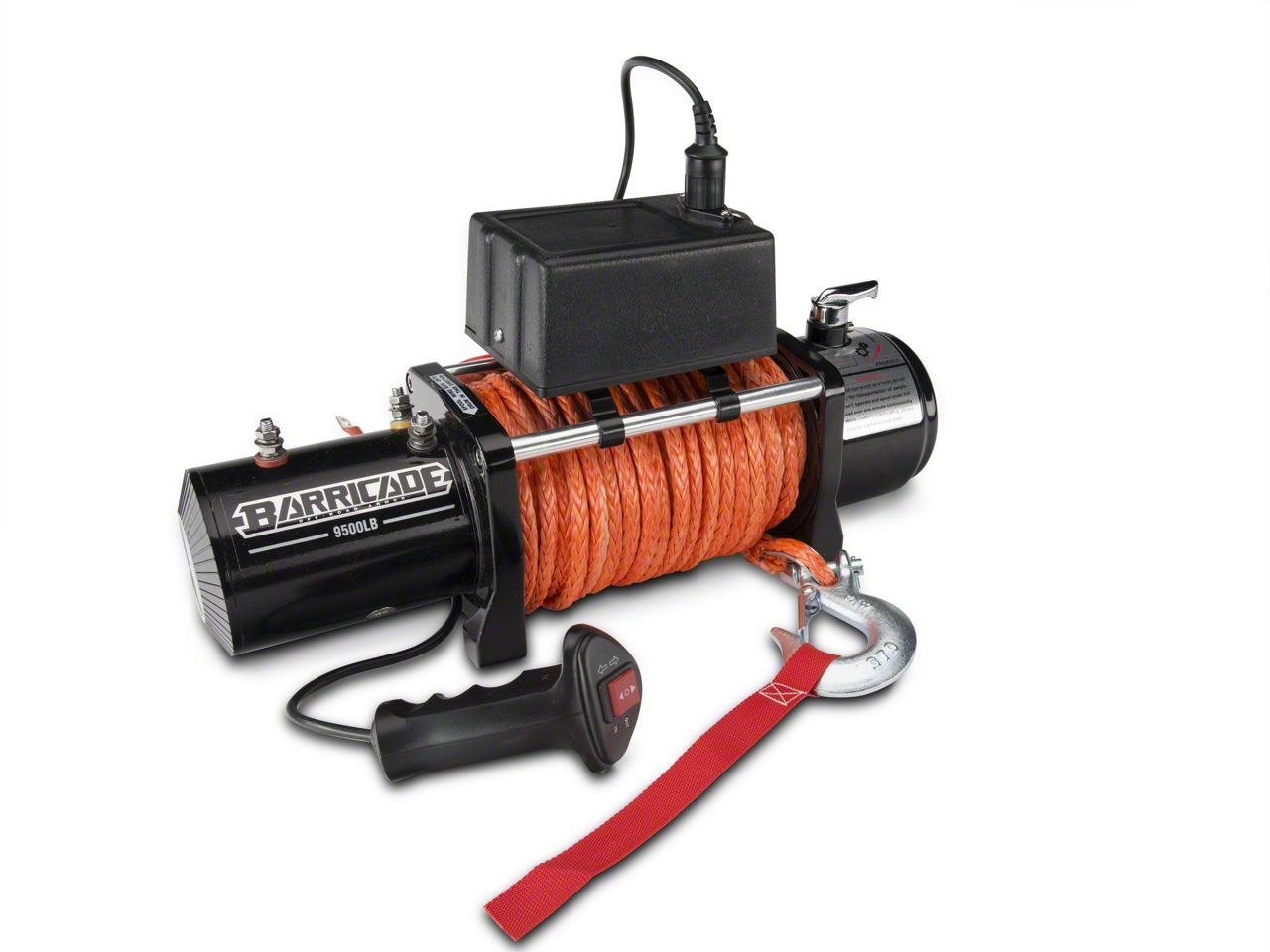

Barricade 9,500 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item TT2599
$0.00
267 Reviews
Our Price
$374.99 each
Out of Stock
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 9,500 lb. Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- 3 Stage Planetary Gear with 195.4:1 Gear Ratio
- 94ft Bright Orange Synthetic Rope Included

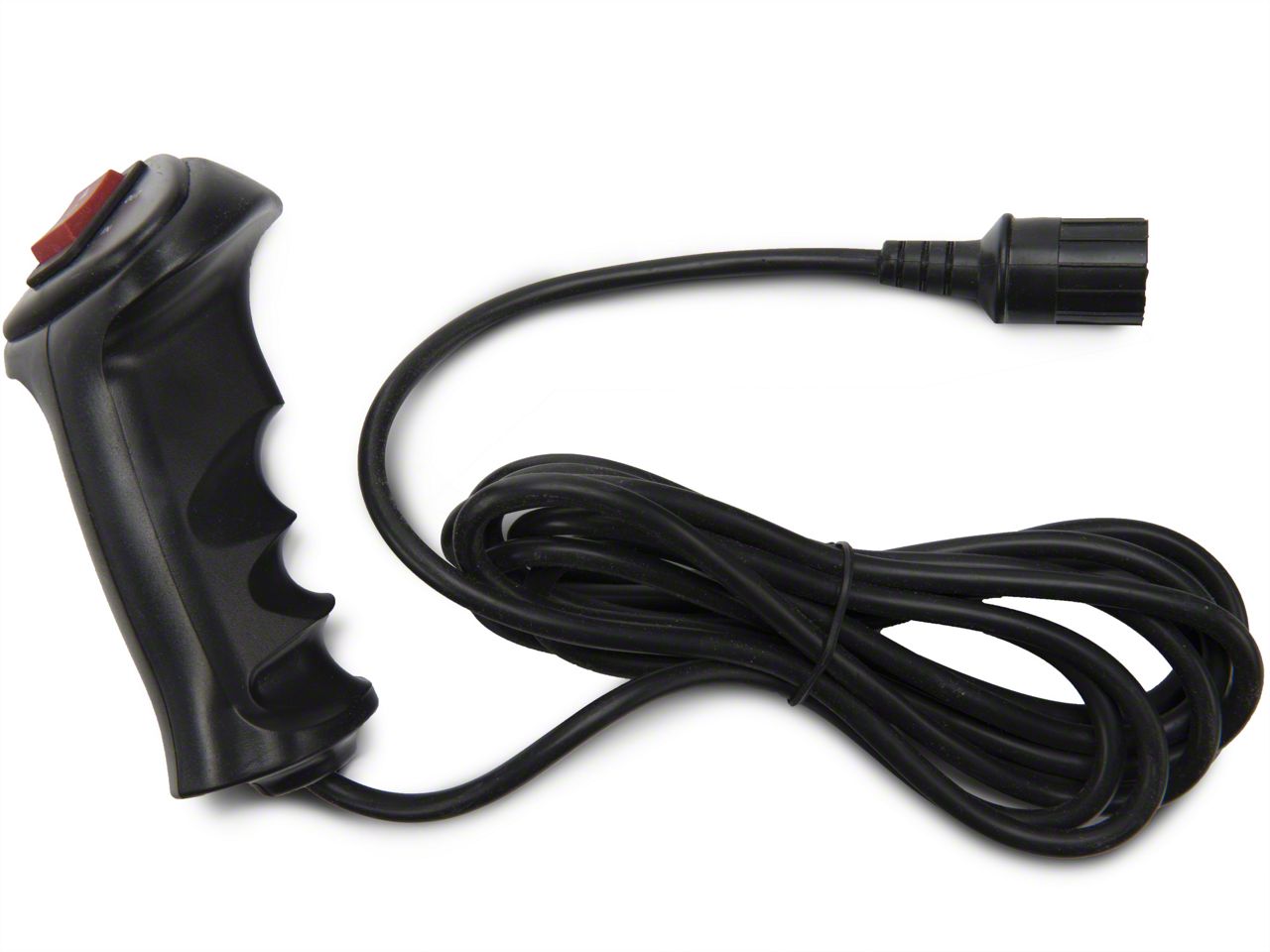

- Wired Remote Switch with 12 Foot Lead
- Durable Black Powder Coat Finish
- Hook, Hawse Fairlead and Cover are Included
- Overall Dimensions: 21.1-inch x 6.3-inch x 8.6-inch
- Mounting Bolt Pattern: 254mm x 114.3mm
- Weight: 44 lbs.
- Fits All Toyota Tacoma Models
Description
Be Prepared. Whether you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your Toyota Tacoma with a reliable recovery system like Barricade Off-Road's 9500 lb Heavy Duty Winch. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1-inch × 6.3-inch × 8.6-inch and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9500lb Winch is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.
Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1-inch × 6.3-inch × 8.6-inch and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9500lb Winch is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.
- Replacement Hardware – SKU U2404H
Barricade TT2599
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 9500lb Winch
- 94ft Orange Synthetic Rope
- Hawse Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Rope Hook
- Red Line Flag
- Hardware
- Winch Cover
