Product Information
Features, Description, Reviews, Q&A, Specs & Installation

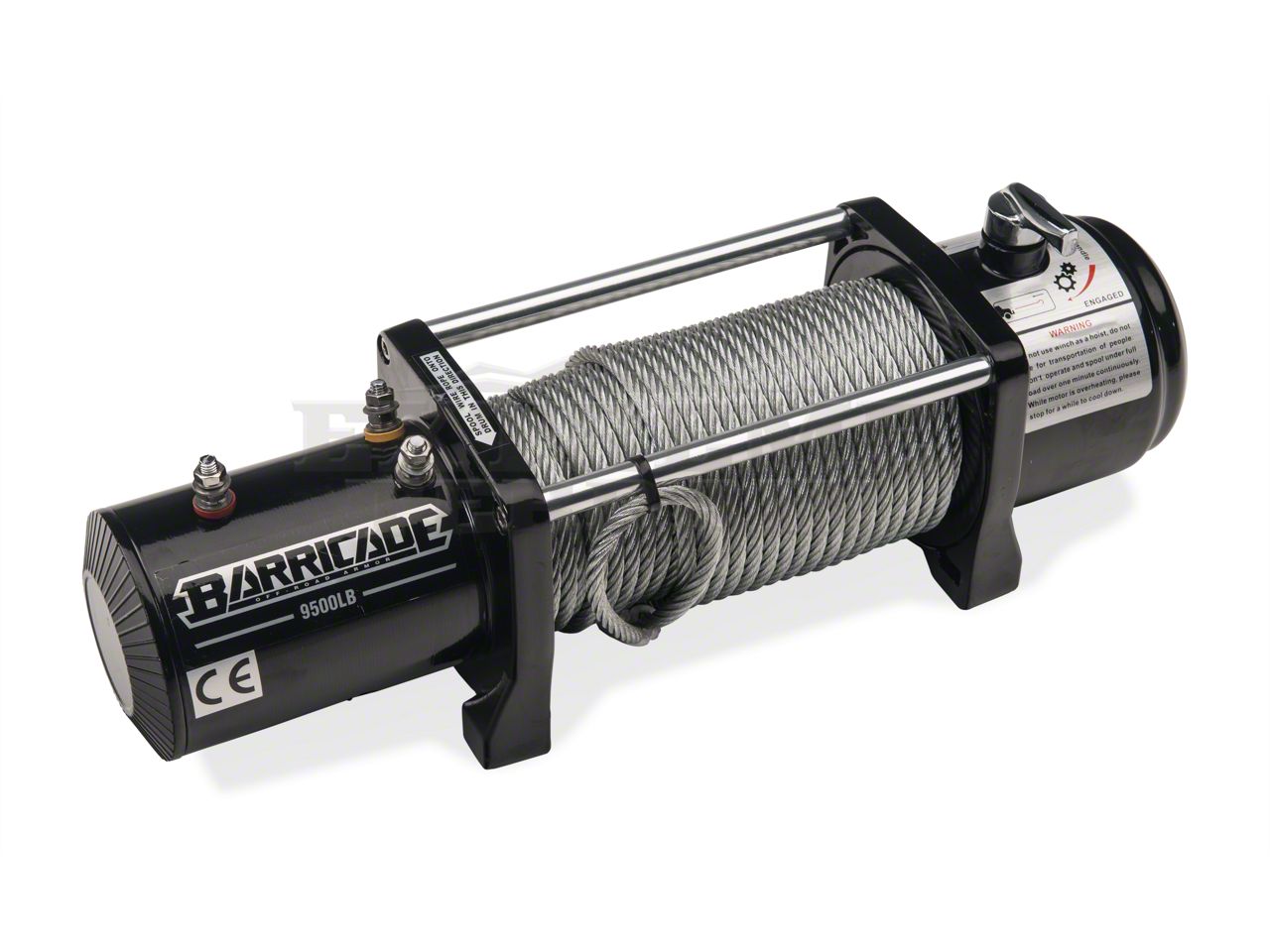

Features
- 9,500 lb. (4310 Kgs.) Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- 3 Stage Planetary Gear with 195.4:1 Gear Ratio
- 94 Feet of 21/64-Inch Steel Winch Rope with Replaceable Hook
- Wired Remote Switch with 12 Foot Lead
- Durable Black Powder Coat Finish
- Hook and Roller Fairlead are Included
- Overall Dimensions: 21.1" × 6.3" × 8.6"
- Mounting Bolt Pattern: 254mm X 114.3mm
- Weight - 58 lbs.
- Fits All Toyota Tacoma Models
Description
Pulling Power. If you take your Toyota Tacoma off-road, you know the importance of being prepared for any situation. It is for this reason you should outfit your Tacoma with a reliable recovery system like Barricade Off-Road's 9500 lb Heavy Duty Winch. This Barricade Winch will provide you with the pulling power you need to get yourself or others freed from the deepest mud or biggest rock jam.
Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio to provide 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable, as well as keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.
Application. This Barricade Off-Road 9500lb Winch is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio to provide 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable, as well as keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.
Application. This Barricade Off-Road 9500lb Winch is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
- Replacement Hardware – SKU U2395H
Barricade TT2384
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 9500 lb. Winch
- Steel Winch Cable
- Roller Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Cable Hook
- Red Line Flag
- Hardware
