Find Winches for your Tacoma

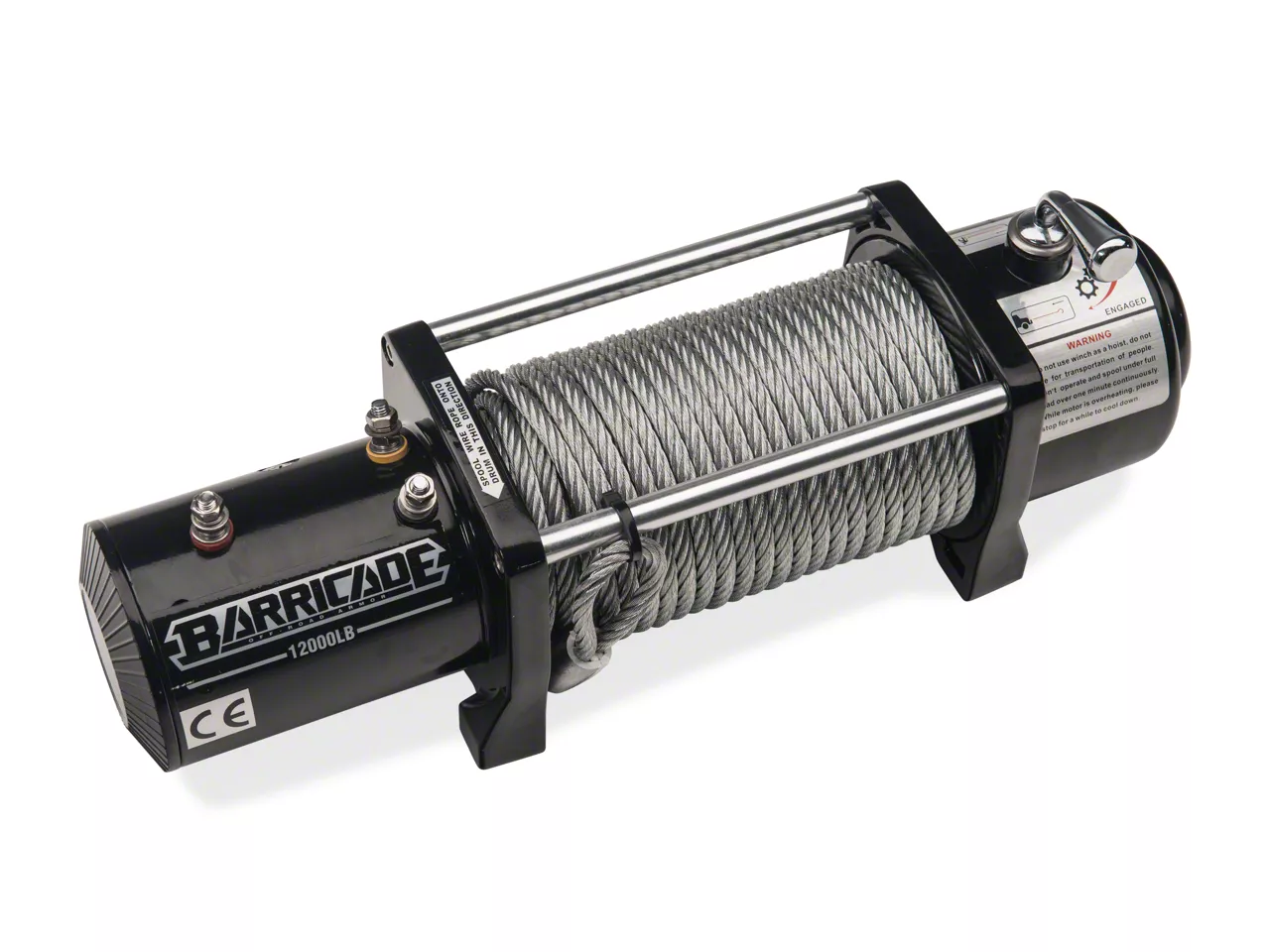

Barricade 12,000 lb. Winch (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item TT2385
$0.00
65 Reviews
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 12,000 lb. (5443 Kgs.) Single-Line Pulling Rating
- 6.6 HP 12-Volt Series Wound Electric Motor
- 3 Stage Planetary Gear with 187.2:1 Gear Ratio
- 94 Feet of 21/64-Inch Steel Winch Rope with Replaceable Hook
- Wired Remote Switch with 12 Foot Lead
- Durable Black Powder Coat Finish
- Hook and Roller Fairlead are Included
- Overall Dimensions: 21.1" × 6.3" × 8.6"
- Mounting Bolt Pattern: 254mm X 114.3mm
- Weight - 58 lbs.
- Fits All Toyota Tacoma Models
Description
12,000 lb of Recovery Power. If you consider yourself an off-roader, you know the importance of having a reliable recovery system, even on the easiest of trails. It is just for this reason that you should outfit your Toyota Tacoma with a 12,000 lb Heavy Duty Winch from Barricade Off-Road. This Barricade Winch, which boasts a 6.6 horsepower motor, will be able to pull you or your friends out of the messiest of situations both on and off the trail.
Heavy Duty 12,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 187.2:1 gear ratio to provide 12,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 12,000 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable, as well as keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.
Application. This Barricade Off-Road 12,000lb Winch is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 12,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 187.2:1 gear ratio to provide 12,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 12,000 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable, as well as keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.
Application. This Barricade Off-Road 12,000lb Winch is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 33.3 ft./min
- 4000 lbs. - 16.8 ft./min
- 6000 lbs. - 12.8 ft./min
- 8000 lbs. - 10.1 ft./min
- 10000 lbs. - 8.8 ft./min
- 12000 lbs. - 7.6 ft./min
- Replacement Hardware – SKU U2396H
Barricade TT2385
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 12000 lb. Winch
- Steel Winch Cable
- Roller Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Cable Hook
- Red Line Flag
- Hardware
