Baja Designs 50-Inch OnX6+ Roof Light Bar Kit (21-24 Bronco)Find parts that fit my vehicle

Item FB7495
Product Image
Baja Designs 50-Inch OnX6+ Roof Light Bar Kit (21-24 Bronco)
Verify parts fit and get product recommendations.
Bronco Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
Want $10? Write one of the first 5 reviews 4.7 Baja Designs Lights product ratings
Our Price

$2,141.95 kit

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Fifty Inch OnX6+ Roof Light Bar
      • Combination Driving / Spot / Cornering Beam
      • High Intensity LEDS
      • Battery Management Technology
      • Hard Coated Polycarbonate Lens
      • Aircraft Grade Aluminum Housing
      • Mil-Spec Hard Anodize Finish
      • Waterproof Rating of IP69K
      • Roof Mounting Brackets Included
      • Includes Toggle Switch and Wiring Harness
      • Fits 2021-2024 Ford Bronco Models

      Description

      Brighter, Bolder, Better. Carefully designed to be the ultimate roof mounted light bar kit for the Ford Bronco. This 50-Inch OnX6+ Roof Light Bar combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail.

      Beam Patterns:

      • Driving/Combo. Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance.
      • Wide Cornering. Baja Designs was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
      • Spot. A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

      Brilliant LED Lighting. Utilizing (30) high intensity CREE LEDs, this Baja Designs OnX6+ Light Bar has a 39,430 lumen output with a 5000K color temperature at 355 watts / 28.2 amps. Using an operating voltage of 9v-28v DC, this LED Light Bar has an average life span of up to 49,930-hours, making it perfectly suited for use on off-road vehicles.

      Battery Management Technology. This Baja Designs OnX6+ Light Bar is equipped with Battery Management Technology (BMT). BMT is designed to eliminate flickering at low voltages while protecting from dangerous current spikes. Battery Management Technology provides added protection to your vehicles wiring and electrical systems.

      Rugged Construction. Baja Designs OnX6+ Light Bar is built tough for use on the roughest terrain. Featuring an aircraft grade aluminum housing with a hard coated polycarbonate lens, this Baja Designs Light has a waterproof rating of IP69K, making it perfect for all weather conditions. The housing is completed in a mil-spec hard anodize finish for aggressive good looks and long lasting corrosion resistance.

      Bolt-on Installation. The included Mounting Brackets install with no drilling required, they simply bolt on utilizing the factory mounting points. The Baja Designs OnX6+ Light Bar comes with a toggle switch wiring harness that will require some minor wiring for operation. Installation can normally be completed in under two hours.

      Application. This Baja Designs 50-Inch OnX6+ Roof Light Bar Kit is designed to fit 2021-2024 Ford Bronco models.

      Fitment:

      Baja Designs 447757

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

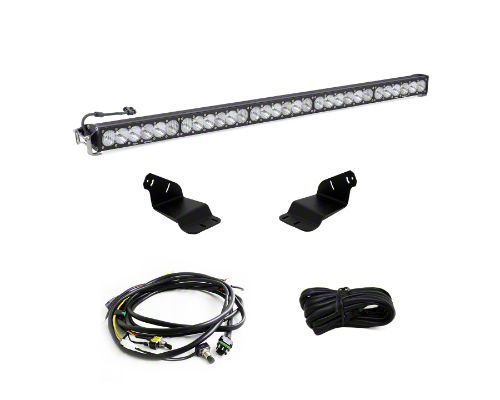

      What's in the Box

      • OnX6+ 50-inch LED Light Bar
      • Bronco Mounting Brackets
      • Toggle Switch Wiring Harness
