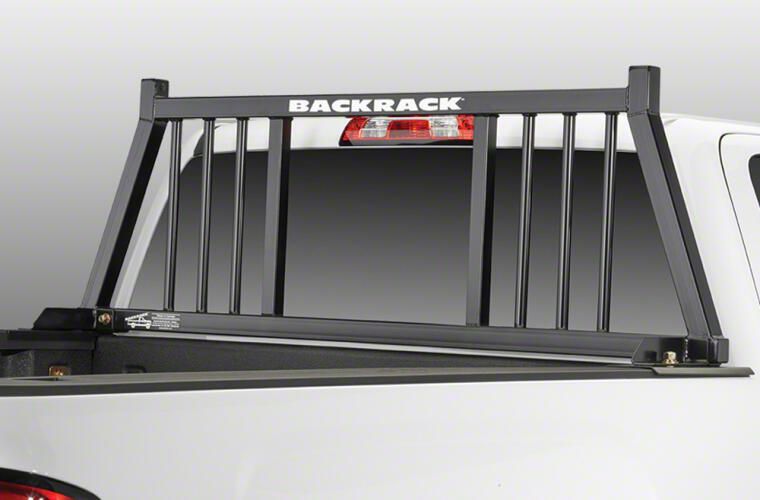

BackRack Three Round Headache Rack Frame (16-24 Titan XD)Find parts that fit my vehicle

Round Verticals Headache Rack by BackRack. Are you tired of your pickup truck looking like any other truck on the street? Choose this cab guard from BackRack and give your vehicle a one-of-a-kind look. The rack comes with Three Round style inserts that are powder coated for superior corrosion resistance and easily bolt into the frame using stainless steel cap screws.

Please Note. Installation requires purchase of hardware kit (sold separately) and varies by part number due to vehicle fitment and installation hardware kit type. Backrack hardware kits are available in both no-drill and low profile designs.

STRENGTH WITHOUT DRILLING. BACKRACK Cab Guards utilize existing holes within the truck's stake pockets wherever possible. Each Hardware Kit is truck specific because it is designed and engineered for the Stake Pocket Bolts to fit into these existing holes wherever and whenever possible. In instances where there are no stake pockets, unfortunately it requires you to drill through the bed rail. Backrack never hesitate to invest in the tooling and design required to create simple but effective fastening systems for their products.

STANDARD NO DRILL. The STANDARD no drill Hardware Kit is designed to be used on trucks that will not have a cross bed Toolbox behind the cab. This system consists of a Railmount Bracket and Rail Plate that adds strength to the sheet metal bed rail of the truck. The Rail Plate provides a solid base on which to secure the Cab Guard assembly. Only this Hardware Kit is compatible with TONNEAU COVER ADAPTER Brackets.

TOOLBOX NO DRILL. The TOOLBOX no drill Hardware Kit is designed to accommodate a standard 21" cross bed Toolbox. The Toolbox sits on top of the Toolbox Brackets allowing you to slide the Toolbox forward so that bed space is not wasted. The Toolbox is secured to the TOOLBOX BRACKETS by drilling sheet metal screws through the Toolbox and into the top of the TOOLBOX BRACKET. Drill and bolt is also acceptable. Clamp hooks that come with the Toolbox are not required. TOOLBOX BRACKETS are also available in 31" length as an accessory. Not compatible with TONNEAU COVER ADAPTER Brackets.

LOW PROFILE DRILL. The LOW PROFILE DRILL Hardware Kit is available for select late model full-size trucks. These require you to drill two holes through the top of the bed rail for installation. If you must have the Toolbox sitting at bed rail height this is the option. Four carriage head bolts secure the assembly allowing you to place the Toolbox at a low profile using existing clamps that came with the Toolbox. Drill if you must. Not compatible with TONNEAU COVER ADAPTER Brackets

Fitment:

• 2016 Nissan Titan XD
• 2017 Nissan Titan XD
• 2018 Nissan Titan XD
• 2019 Nissan Titan XD
• 2020 Nissan Titan XD
• 2021 Nissan Titan XD
• 2022 Nissan Titan XD
• 2023 Nissan Titan XD
• 2024 Nissan Titan XD
