2021-2025
Installation Time
(approx) 3 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Bronco Sales Tech
1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
-
Add Details
- Change Vehicle
- Bronco Builds Gallery
Find Lockers for your Bronco
Artec Industries 14-Bolt Pinion Guard with Low Truss Bridge (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item FB1491
Bronco Sales Tech
Verify parts fit & get product recommendations
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$169.99 kit
Out of Stock
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Protects Pinion from Damage
- Heavy Duty 1/4-inch and 3/8-inch Steel Plate Construction
- Natural Finish
- Includes 3/8-inch Grade 8 Hardware
- Welding Required for Installation
- Low Truss Bridge - Compatible with TR1401 and TR1406 Rear Trusses
- Fits 2021-2025 Bronco Models
Description

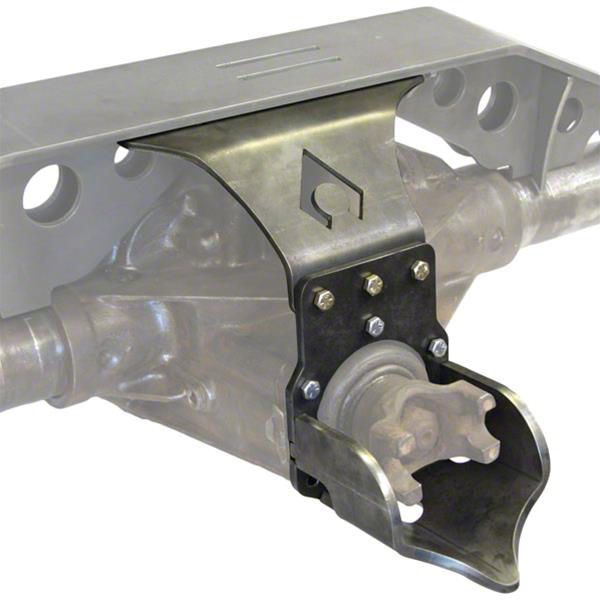

Protect Your Pinion. This Artec Industries 14-Bolt Pinion Guard with Low Truss Bridge was engineered to protect your Bronco pinion from damage caused by rocks and other large obstacles found on the trail. This Pinion Guard and Truss Bridge is a must have upgrade for any serious rock climber.
Steel Plate Construction. Artec Industries manufactures its Pinion Guard from CNC cut, heavy duty 3/8-inch steel plate for superior strength and rigidity. Likewise, the Bridge is cut from 1/4-inch steel plate. Both the Guard and Bridge are left in their natural steel finish allowing them to be welded in place by the end user. 3/8-inch grade 8 hardware is included.
Application. This Artec Industries 14-Bolt Pinion Guard with Low Truss Bridge is designed to fit 2021-2025 Bronco models. Please note this Pinion Guard with Low Truss Bridge is compatible with TR1401 and TR1406 Rear Trusses only.
Please Note. Trimming of the Bridge may be necessary depending on pinion angle and Truss used.
Steel Plate Construction. Artec Industries manufactures its Pinion Guard from CNC cut, heavy duty 3/8-inch steel plate for superior strength and rigidity. Likewise, the Bridge is cut from 1/4-inch steel plate. Both the Guard and Bridge are left in their natural steel finish allowing them to be welded in place by the end user. 3/8-inch grade 8 hardware is included.
Application. This Artec Industries 14-Bolt Pinion Guard with Low Truss Bridge is designed to fit 2021-2025 Bronco models. Please note this Pinion Guard with Low Truss Bridge is compatible with TR1401 and TR1406 Rear Trusses only.
Please Note. Trimming of the Bridge may be necessary depending on pinion angle and Truss used.
Artec Industries PG1403
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Pinion Guard with Bolt Plate
- Low Truss Bridge
4.8
Reviews of Artec Industries Drivetrain Products (43)
Reviews of Artec Industries Drivetrain products have an average rating of 4.8 out of 5
Nov 5, 2024
Review shared from Artec Industries Dana 44 Hardcore Differential Cover (97-18 Jeep Wrangler TJ & JK)
2002 Wrangler - diffprotection
HARD CORE DIFF COVER
Great product... put this on to run holy cross trail on CO... i scraped it on rocks, hit it, the works! still looks good, and did its job ! protect my dana 44
Jun 26, 2024
Review shared from Artec Industries Inner C-Gussets (07-18 Jeep Wrangler JK)
2013 Rubicon - JDP
Strong
The new gussets are made with some heavy duty steel. Make sure to pre heat the cast iron before welding these in. Keep the temp hot and ping the metal as you go so they do not crack your welds.
May 21, 2024
Review shared from Artec Industries Inner C Gussets (18-25 Jeep Wrangler JL Sport, Sahara)
2022 - AmyP77
Good option
So far so good! No issues with the trusses/gussets so far.
Sep 24, 2023
Review shared from Artec Industries Dana 30 Front Axle Truss (07-18 Jeep Wrangler JK, Excluding Rubicon)
2013 Wrangler - Roadkill29
Love it
Fit perfect. Looks great. Has not been installed long enough to rate its durability
Sep 9, 2023
Review shared from Artec Industries Inner C-Gussets (07-18 Jeep Wrangler JK)
2013 Wrangler - Roadkill29
Good quality
Heavy duty material. Perfect fit on my 2013 Wrangler Sport. They were just installed, so I can not comment yet on its durability.
Jun 18, 2023
Review shared from Artec Industries Dana 30 Front Axle Truss (07-18 Jeep Wrangler JK, Excluding Rubicon)
2016 Wrangler - JeffMarr
Artec Dana 30 front truss
If you are not a welder/fabricator or know 1 personally. I would not tackle this job. I am a welder/fab so found this rather straightforward. A little grinding is required for a proper fit. Literally took me longer to pre-heat and post heat the welds on the cast than it did to actually do the install. And I did this while the axel was still mounted. There are some tight spots to weld and grind but not impossible. My Jeep has a 3 1/2 lift giving me plenty of work space. I installed both front and back truss in about 5 hours. Having my axels trussed now gives me a little sense of comfort while running 37”s
Jun 7, 2023
Review shared from Artec Industries Dana 30 Front Axle Truss (07-18 Jeep Wrangler JK, Excluding Rubicon)
2009 Wrangler - nonemaker25
Great
Went very smooth and lined up no issue. Would recommend to anyone for ease of mind.
Apr 20, 2023
Review shared from Artec Industries APEX Rear Axle Truss for 1.50+ Inch Lift (07-18 Jeep Wrangler JK)
JeffMarr
Very nice!
1st off I will say I am a welder/fabricator by trade. So I did this install myself. The fit was perfect. Had zero grinding. I did this while the axel was still on my Jeep. 3 1/2” lift gave me plenty of clearance. A few difficult welds to make but not impossible. Welding cast is required. Very pleased with the quality of the product, out of the box it just feels sturdy. Quite pleased with product. Install time for myself only took maybe half hour of actual work. Pretty easy and straightforward. Only reason it took me longer was pre heating and post heating of the cast pumpkin. If you are not an experienced welder I’d try and find a buddy. If the welds crack on the pumpkin, you are defeating the purpose. Also possibility of warping axel sleeve.
Feb 3, 2023
Review shared from Artec Industries Dana 44 Front Axle Truss (07-18 Jeep Wrangler JK)
2010 Rubicon - JonnyTrucks
Best upgrade for your JK44
A must for anyone who wheels or running a 37+ on stock JK axles. I recommend doing a full wrap weld too around the diff housing.
Feb 3, 2023
Review shared from Artec Industries D44 Modular Rear Truss (07-18 Jeep Wrangler JK)
2010 Rubicon - JonnyTrucks
100% PURE BEEF
Luckily my welder knew how to weld to the cast diff housing and as a precaution also did a full wrap (weld axle tubes to diff housing) too.
Questions & Answers
No questions about this product yet.
Ask the First Question
