1. Beginning on the passenger side, remove the side dash panel using a panel removal tool (Figures A & B).
2. Open the glove compartment (Figure C). Push the inside tabs inward until the two plastic dowels can clear the dash and remove the glove compartment.
3. Using a 7mm socket wrench, remove the two lower bolts under the glove compartment area, as well as a third bolt in the bottom corner of the dash near the door panel (Figure D).
4. Using a 7mm socket wrench, remove the two copper bolts from the side of the dash which hold the speaker into place (Figure E).
5. Pull the plastic trim covering the dash forward to expose a 10mm bolt holding the bottom of the speaker in place and remove using a 10mm socket wrench (Figure F).
6. Unclip the speaker from the speaker housing (Figure G).

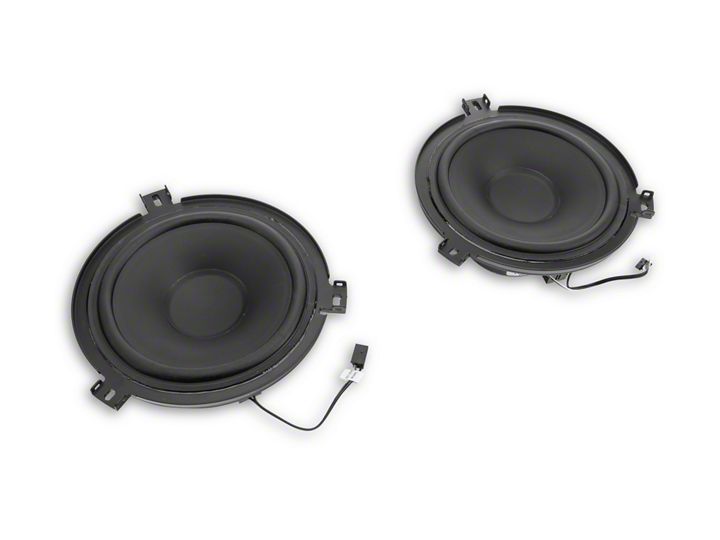

7. Disconnect the speaker from the speaker housing using a Philips head screwdriver and replace with the new Alpine speaker (Figure H).
8. Return the speaker housing back into the dash (Figure I). Return the five bolts (four 7mm, one 10mm) removed between Steps 3-5.
9. Remove the top off the tweeter in the top corner of the dash by the windshield using a panel removal tool (Figure J).
10. Remove the two bolts holding the tweeter in place using a 7mm socket wrench (Figure K).
11. Disconnect the tweeter (Figure L).
12. Press the Alpine tweeter into the plastic tray firmly (Figure M).
13. Connect either the 0db or 3db (installer's preference) and the ground wires to the provided wiring harness (Figure N).
14. Connect the other end of the wiring harness to the speaker harness (Figure O).
15. Return the two bolts removed in Step 10 (Figure P).
16. Return the plastic trim cover (Figure Q).
17. Repeat all steps on the driver's side.
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 10/04/2018
